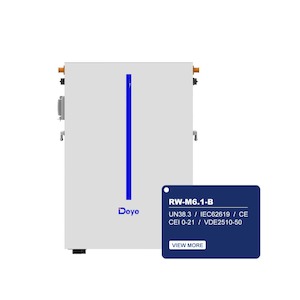

Deye 6.14kWh Low Voltage Wall Mount Battery Pack

The Deye RW-M 6.1-B is a state-of-the-art Lithium Iron Phosphate (LFP) battery designed to provide reliable, safe, high-efficiency power storage solutions for residential and commercial applications. With its advanced Battery Management System (BMS) and modular design, this battery ensures a long lifespan, high power density, and complete protection for your energy storage needs. Key Features:

Safety and Longevity

- Cobalt-free LFP chemistry ensures safer operation.
- An intelligent BMS provides comprehensive protection and extends the cycle life.
- High discharge power support ensures reliability.

High Efficiency:

- High-power density for efficient energy storage.
- Operating voltage range from 43.2V to 57.6V.
- Usable energy capacity of 5.53 kWh with a nominal voltage of 51.2V.

Flexible and Scalable:

- Modular design allows for easy expansion, supporting up to 32 units in parallel.
- Maximum capacity of 196 kWh.
- Suitable for various applications with limited installation space and restricted load-bearing.

Convenient and Intelligent:

- Auto-networking battery modules for effortless maintenance.
- Remote monitoring and firmware upgrades via USB drive.
- CAN 2.0 and RS485 communication ports for seamless integration.

Eco-Friendly:

- Made from non-toxic,pollution-free materials.
- Designed to be environmentally friendly.

Vesatile Installation:

- Supports both wall-mounted and floor-mounted setups.
- Saves installation space with a flat design

Robust Construction

- IP65 rating for a robust enclosure.
- Operates efficiently within a wide temperature range (-20℃ to 55℃).
- Cycle life of ≥ 6000 cycles at 25℃. Specification Technical Specifications:

- Battery Chemistry: LiFePO4
- Capacity: 120 Ah
- Energy: 6.14 kWh
- Rated DC Power: Peak (2 mins, 25℃) 150 kW
- Dimension (W/H/D): 510 mm 740 mm 145 mm (without base)
- Weight: Approx. 58 kg
- Operating Temperature: Charge: 0～55℃ / Discharge: -20℃～55℃
- Storage Temperature: 0℃～35℃
- Humidity: 5%～95%
- Altitude: ≤ 2000 m
- Warranty Period: 10 years
- Energy Throughput: 20 MWh @ 70% EOL
- Certifications: UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50 Accessories Included:

- Battery Hanging Board (RW-M6.1-B-Hboard): For wall mounting.
- Hybrid Inverter Cable (RW-M6.1-B-PCable1500): 1500mm length, waterproof terminals.
- Battery Parallel Cable (RW-M6.1-B-BCable300): 300mm length, waterproof terminals.
- Fixed Supports (RW-M6.1-B-Fixed support): This is used to secure the battery when floor-mounted. Downloads
