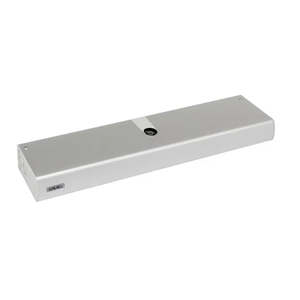

A952 Operator

The A952 automation, compliant with EN16005, is able to move doors up to a weight of 800 Kg, in continuous use and in absolute silence. It can be installed on escape routes in compliance with EN16005 and is able to meet all the safety requirements of EN13489-1 PLD.

- Variable ratio rack and pinion to provide constant spring compression (FAAC PATENT).
- Variable ratio parallel shaft gears for effective and smooth movement (FAAC PATENT).
- Compact dimensions ideal for fire and smoke vent doors.
- The housing cover is made of silver anodized aluminum.

Max leaf weight = Sliding arm 800kg - 700mm - Articulated arm 700kg - 750mm

Leaf length = From 700 to 1600mm

Thanks to the special spring system, with push and pull function depending on the type of installation (sliding or articulated arm), the A952 automation is characterized not only by the high level of security it can guarantee but also by its extreme versatility.

With a single automation, it is possible to ‘transform’ swing doors by choosing from different uses - standard, emergency exit, fire resistance, or smoke evacuation - adaptable to many areas of applications such as education, airports, hospitals, but also hotels, residential and offices.
