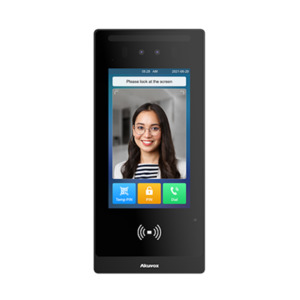

AV-E18C Akuvox Intercom

The Akuvox AV-E18C is a smart 7″ face recognition TCP/IP PoE Network door phone featuring touchless building access, optional wireless 4G LTE communication, hassle-free management, and more. 4G LTE version available on request. Features:

- With 3 Inputs and 2 Relay Outputs
- Excellent Storage for

- Facial Recognition: 20,000
- Card Capacity: 20,000
- Event Capacity: 50,000
- Multi-Technology Card Reader

- 13.56MHz
- 125kHz
- NFC
- A 1024 x 600 7″ IPS LCD Display
- 2M pixel, WDR Camera
- Interfaces

- Wiegand IN/Out Configurable
- OSDP RS485 Output
- TF Card Slot
- Built-In Directory
- Programmable Soft Keys
- Option to add an internal 4G LTE Cellular Module Applications

- Gate entry points whether local to Network or Remote when using LTE module
- Doors entry points
- Single Households
- Apartments or Gated Communities
- Offices
- and more. Physical & Power Housing Material: Plastic Display: 7 Inch IPS LCD, 1024×600 Camera: 2M pixels, WDR Wiegand In: 1 Wiegand Out: 1 RS485 Port: 1 RF Card Reader: 13.56MHz,125kHz & NFC Relay In / Out: 3 / 2 TF Card Slot: 1 Ethernet Port: RJ45, 10/100Mbps adaptive Bluetooth: Support Reset: 1 802.3af Power-over-Ethernet 12V DC Connector (if not using PoE) Tamper: Support Installation: Wall-mounted IP Level: IP65 Working Humidity: 10~90%, no condensing Working Temperature: -20℃~ 55℃ Storage Temperature: -30℃~ 60℃ Identification Identification Mode: Face, PIN, NFC, RFID Card, BLE & QR code Identification Speed: ＜200ms Capacity Face Capacity: 20,000 Card Capacity: 20,000 Event Log: 50,000 Forehead Temperature Measurement Only E18C(MD02) support Distance: 0.3M ~ 1M Accuracy: 0.1℃ Deviation: ±0.3℃ Range: 34℃ ~ 45℃
