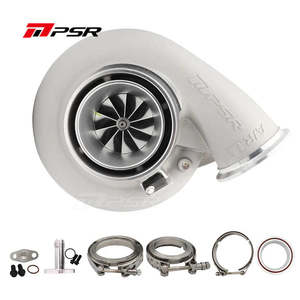

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

- PSR Class Legal Turbo with 67/98mm Compressor wheel
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
- 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- 8 Turbine housing in option
- Installation Hardware: 3" flange kit for Comp. Outlet, T4 Gasket/3" flange kit for Turb. Inlet, 3.5"/4" flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately Details:

- Compressor Wheel: 67 98mm
- Turbine Wheel: 81.6 89mm
- Compressor Inlet: 5″ Hose
- Compressor Outlet: 3″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required
- Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’) Eight Turbine housings in Option:
- T4(Divided) inlet, Vband outlet, 1.01 A/R
- T4(Open) inlet, Vband outlet, 1.15 A/R
- T4(Divided) inlet, Vband outlet, 1.15 A/R
- T4(Divided) inlet, Vband outlet, 1.28 A/R
- T4(Divided) inlet, Vband outlet, 1.44 A/R
- Vband inlet and Vband outlet, 1.01 A/R
- Vband inlet and Vband outlet, 1.15 A/R
- Vband inlet and Vband outlet, 1.28 A/R
