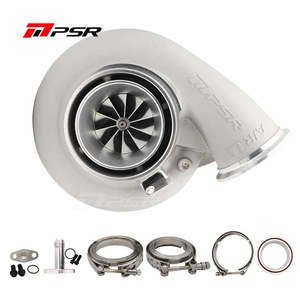

PSR Class Legal 6775G Dual Ball Bearing Turbocharger

- PSR Class Legal Turbo with 67/98mm Compressor wheel
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
- 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- 7 Turbine housing in option
- Installation Hardware: 3" flange kit for Comp. Outlet, T4 Gasket/3" flange kit for Turb. Inlet, 3.5"/4" flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately Details:

- Compressor Wheel: 67 98mm
- Turbine Wheel: 82 75mm
- Compressor Inlet: 5″ Hose
- Compressor Outlet: 3″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
- Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’) Turbine housing option:
- T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
- T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
- T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
- T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
- Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
- Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
- Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
