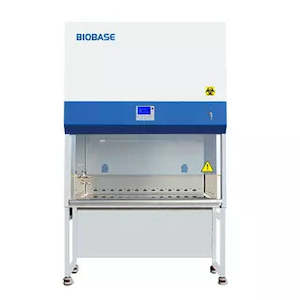

BIOBASE Class II B2 BSC

Three protection: operator, sample and environment.

Airflow system: 70% air recirculation, 30% air exhaust

A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.

Advantage:

1. Motorized front window.2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

Models:

Model

BSC-4FB2-NA

BSC-4FB2-GL

External Size(W D H)

1383×775×2325mm

Internal Size(W D H)

1210×800×660 mm

Tested Opening

Safety height 200mm (8'')

Max Opening

550mm(22’’)

Exhaust Airflow Volume

100%:1320m³/h(776cfm)

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

HEPA Filter

Two, 99.9999% efficiency at 0.3um, filter life indicator

Filter Guard Type

Aluminum alloy frame

Noise

NSF 49≤67 dB/EN 12469≤65dB

Illumination

≥1000Lux

Display

LCD Display

Waterproof Socket

2, Total consumption:≤500W

Tap

Water tap 1, Gas tap 1

Ground Resistance

≤ 0.10Ω

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689

Consumption

400w

Alarm

Abnormal airflow velocity; Filter replacement; Front window at unsafe height.

DC Motor

One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and

low power consumption

Material

Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with

anti-bacteria power coating

UV Lamp

30W

Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination

Illuminating Lamp

18W 2

LED lamp

Standard Accessory

Illuminating lamp, UV lamp 2, Base stand, SS water & gas taps, Drain valve,

Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks

Optional Accessory

Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer,

Electric height adjustable base stand, Remote control

Package Size (W D H)

1540 1080 1950mm

Gross Weight

350Kg
