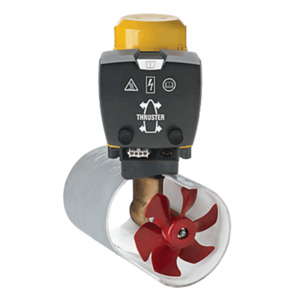

Vetus Bow Thruster 60 Kgf 3kW 12v

Bow Thruster 60 Kgf 3kW 12v Product Code BOW60 The Vetus 60Kgf unit designed to replace older Vetus 50Kgf units Bow Thruster 60 Kgf 3kW 12v

The Vetus 60Kgf unit designed to replace older Vetus 50Kgf units, having the same 185mm diameter tunnel. Features:

Dimensions (mm) – See Image
A 143.5
B 397
C 77
D 370 / 740
E 160
F 130 Diameter
G 185
H 185 Diameter

VETUS WARRANTY

3 years warranty on equipment and 5 years warranty on engines Specifications:

- Thrust: 60 Kgf
Power kW (hp): 3 (4)
Reversible DC Motor: Yes
Tunnel Internal Diameter: 185 mm
Weight (Excluding Tunnel): 22 Kg

Power Details

- Current Consumption: 280 Amps
Operating Time (max/hr): 5 minutes
Main Fuse ('Slow Blow'): 200 Amps
Battery Ah Min/Max: 1 x 108 / 1 x 143
Battery Supply Cables: Up to 11 meters – 50 mm²
Battery Switch rating: 250 A

NZ Code BOW60
