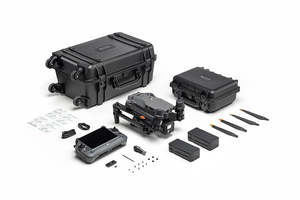

DJI Matrice 30 (2 x Battery and Charging Station)

The M30 is a lightweight & portable all in one drone that comes with a 12MP Wide Camera, 48MP Camera and a Laser Rangefinder.

The DJI Matrice 30 is an all new all in one solution that combines all of DJI's latest transformational technologies into one portable, lightweight drone that is capable of next level flights. The M30 drone has new integrated high performance sensors with a wide, camera along with an laser range finder.

- 41 Minute maximum flight time.
- 15 m/s maximum wind resistance & 23 m/s maximum speed.
- AI Intelligence for easier operations including smart pin and track & Waypoints 2.0
- 7000m service ceiling to allow for high altitude operations
- IP55 ingress protection. ENVIRONMENTAL ADAPTABILITY

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.

SAFE & RELIABLE.

The DJI M30 has dual-vision and ToF sensors on all six sides of the aircraft, keeping it and your mission safe. There is also a built in ADS-B receiver that provides timely warnings of any incoming aircraft.

ENHANCED TRANSMISSION

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.
Bolster your connection with DJI Cellular Module, an optional 4G dongle4 that supports stable video transmission in complex, or remote work environments.

CAPTURE EVERYTHING

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

PRO FLIGHT

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

DJI PILOT 2

Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.

GROUND TO CLOUD

FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.

ADVANCED INTELLIGENCE

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

DJI DOCK (SOLD SEPARATELY)

The DJI Dock (M30 Series Dock Version7) has flagship-level performance with a maximum operation range of 7 km8, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃.

Product Specifications PRODUCT SPECIFICATIONS AIRCRAFT

Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)

Dimensions (folded): 365×215×195 mm (L×W×H)

Diagonal Wheelbase: 668 mm

Weight (incl. two batteries): 3770 ± 10 g

Max Takeoff Weight: 4000 g

Operation Frequency 1 : 2.4000-2.4835 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP):

2.4 GHz: 15 lux)

INFARED SENSING SYSTEMS

Obstacle Sensing Range: 0.1 to 10 m

FOV: 30°

Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 INTELLIGENT FLIGHT BATTERY

Capacity: 5880 mAh

Voltage: 26.1 V

Battery Type: LiPo 6S

Energy: 131.6 Wh

Net Weight: Approx. 685 g

Operating Temperature: -20° to 50° C (-4° to 122° F)

Storage Temperature: 20° to 30° C (68° to 86° F)

Charging Temperature: -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

Chemical System: LiNiMnCoO2

AUXILIARY LIGHTS

Effective Illumination Distance: 5 m

Illumination Type: 60 Hz, solid glow

REMOTE CONTROLLER

Screen: 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

Internal Battery:

Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNi
