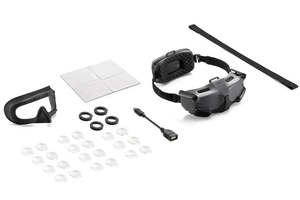

DJI Goggles Integra

DJI O3 Video Transmission 1

HD Low-Latency

Soak up the sky with , and extend your experience with DJI Avata and DJI RC Motion 2 for acute control and immersive, first-person flight.

COMBINED FOR CONVENIENCE

The lightweight adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off.

The built-in battery headband feels lightweight, balanced, and comfortable to wear. 2

can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day.

Total Weight - Approx. 410 g

Antenna Design - Foldable

Max Operating Time - Two hours 3

HD DISPLAY

equipped with two HD Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. The high screen refresh rate presents the fun of flight in a smoother and more fantastic manner.

Display Technology - Micro-OLED

Screen Resolution - 1080p

Max Brightness - 700 nits

Max Screen Refresh Rate - 100 Hz 4

Supported CODEC Formats - H.264 and H.265

TÜV Rheinland Low Blue Light Certification - presents HD display quality while protecting your eyes with a comfortable experience.

ULTRA-LOW LATENCY, SMOOTH, AND STABLE VIDEO TRANSMISSION

equipped with DJI O3 video transmission, boasting latency as low as 30 ms. 5 The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid, immersive HD viewing experience with minimal interference. 6

New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. 7 The tracking effect of the goggles display frame aligning with the video transmission frame is optimized to cut down video transmission latency and fluctuations. Viewing footage with also easier on the eyes, effectively reducing visual fatigue and dizziness.

Lowest Video Transmission Latency - 30 ms

Auto Frequency Band Selection - 2.4 GHz or 5.8 GHz

SHARE THE SKY

Connect with the DJI Fly app on your smartphone to display a real-time camera view to your goggles and smartphone simultaneously. Share the view with friends to enjoy stunning and immersive flight together.

1. supports DJI O3 video transmission with DJI Avata or DJI O3 Air Unit.

2. Wearing and viewing experience may vary by user.

3. Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.

4. The screen refresh rate changes with the video transmission frame rate. It may switch between 100 Hz and 60 Hz to adapt to the current video transmission frame rate.

5. Measured using 1080p/100fps video transmission, tested outdoors in an open, interference-free environment.

6. The 5.8GHz frequency band is banned in certain countries/regions. Check and comply with local laws and regulations before flying.

7. The frame synchronization algorithm for has been optimized from prior modelsto improve video transmission and reduce visual fatigue and dizziness. PRODUCT SPECIFICATIONS GOGGLES

Model: RCDS13
Weight: Approx. 410 g (battery included)
Dimensions (L×W×H): With antennas folded: 170×104×74.44 mm
With antennas unfolded: 205×104×104 mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
IPD Range: 56-72 mm
FOV (single screen): 44°
Video Recording Format: MOV
Supported Video Playback Formats: MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature: -10° to 40° C (14° to 104° F)
Power Input: Built-in battery
Supported SD Cards: microSD (up to 512 GB)
Recommended microSD Cards: SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U
