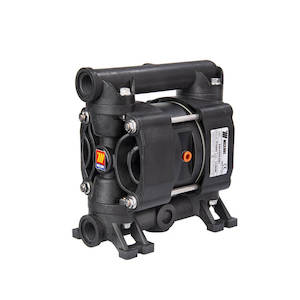

MECLUBE Polypro Diaphragm Pump, 1/2", Viton Seals

This heavy duty European air operated double diaphragm pump offers both reliability and high performance, and is an excellent choice for high volume transfers. An AODD pump such as this unit is ideal in situations when fluids need to be transferred where there is little back pressure on the delivery line.

Applications which suit this pump are the transfer of oils, water and water-based chemicals, coolant, adblue, anti-freeze and many other potential pumping applications for compatible fluids.

We have access to a wide range of other AODD pumps from this quality European manufacturer to suit a huge variety of fluid types and flow rates. for more information on these.

- Wetted parts materials – Polypropylene, PTFE Valve Balls, Hytrel Diaphragms, Viton seals
- Suitable for pumping: Oils, Water, Waterbased chemicals, Anti-freeze, Adblue,
- Excellent Suction Capability
- Maximum free flow rate 35L/min
- 1/2" BSPF inlet & outlet ports

SPECIFICATIONS Air Inlet Pressure: 3-8bar / 45-115psi Air Inlet Connection: 6mm Air Tube (Adapter available if required)
Inlet / Outlet Ports: 1/2" BSPF Pump Max Output Pressure: 8bar / 115psi Pump Max Free Flow Rate: 3 5L/min Max Suction Lift - Dry: 9.8m Max Suction Lift - Wet: 5m
Duty: Heavy Duty Noise: 65dB
Weight: 1.4Kg
