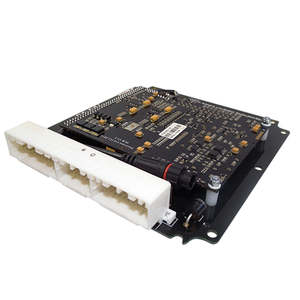

LINK ECU - TOYOTA MR2 V2-3 & CELICA ST205 - PLUGIN ECU
The Link G4X MR2Link V3 TST205X PlugIn fits the Toyota MR2 V2-3 & Celica ST205. The ECU PCB fits discretely inside the original factory enclosure.
Installation of Link's Toyota MR2 TST205X ECU is a breeze - no alteration of the factory wiring loom is required. A built-in connector (or pins in some models) provides additional inputs and outputs such as oil pressure inputs or anti-lag / logging switches.
Factory features are supported - see Features for any exceptions.
MAP Sensor not included.
Need more inputs and outputs?
The XS Expansion Loom offers the ability to add additional inputs & outputs on our range of plug-in ECUs.
FEATURES G4X PLUGIN KEY FEATURES (WHERE APPLICABLE)
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune - automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- Up to 32Mbit internal logging memory
- Staged injection
- Knock with "windowing"
Engine Configurations
Engine configurations are pre-set into PlugIn ECUs with a "start" base map.
Limits
- Engine Temperature Dependent Soft and Hard RPM Limit
- Engine Temperature Dependent Soft and Hard Boost Limit
- Vehicle Speed Limit
- System Voltage Limit
- User Configurable RPM Limit based on external input
Fueling Adjustments
- Up to 440 Zone Fuel Table with configurable load and RPM centres. Configurable X and Y Axis Parameters
- Multiple Fuel Tables
- Up to 6D Fuel Mapping
- Injection Rate
- Master Enrichment
- Pre Crank Prime
- Crank Enrichment
- Post Start Enrichment
- Warm Up Enrichment
- Acceleration Enrichment
- IAT Fuel Correction
- Injector Deadtime Compensation
- Overrun Fuel Cut
- Idle Load Trims
- Fuel Temperature Correction
Ignition Adjustments
- Up to 440 Zone Ignition Table with configurable load and RPM centres. Configurable X and Y Axis Parameters
- Closed Loop Knock Control. (Requires External Controller)
- Crank Dwell Extension
- Maximum Advance
- AFR Table Correction
- Spark Duration
- Beginning / End Injection Definable
- Dwell Time Table. Configurable X and Y Axis Parameters
- Individual Cylinder Trim
- Individual Cylinder Tables
- Multiple Ignition Tables
- Up to 6D Ignition Mapping
- Individual Cylinder Ignition Trim
- IAT Trim
- Voltage Correction
- ECT Trim
- OEM Compatibility
- CDI Compatibility
Triggering
- Digital Trigger Decoding
- Reluctor, Optical Proximity or Hall Sensors
- Programmable filtering and arming thresholds
- Configurable trigger patterns or preset triggering options.
- Supports nearly all OEM trigger patterns and custom trigger arrangements
MotorSport Features
- Antilag Group A/Group N
- Launch/Traction Control
- Flat Shifting
- Stats Logging
- Staged Injection
Auxiliary Output Options
- Application specific. Output drives can be altered from OEM configuration. e.g. Purge control may be in the standard set-up. This can be re-wired and programmed in the Link Plug-in to control intercooler water spray (if added) for example.
- Each Output independently configurable
- Unused ignition and injection outputs available as auxiliary outputs
- General Purpose Output
- General Purpose PWM
- Continuously Variable Valve Timing Control
- Closed Loop Idle Speed Control (Solenoid or Stepper (4 & 6 Terminal))
- Fuel Pump
- Fuel Pump Speed Control
- Engine Fan
- Air Con Clutch
- Air Con Fan
- Intercooler Spray
- Tacho
- Check Engine Light
- Purge Solen
