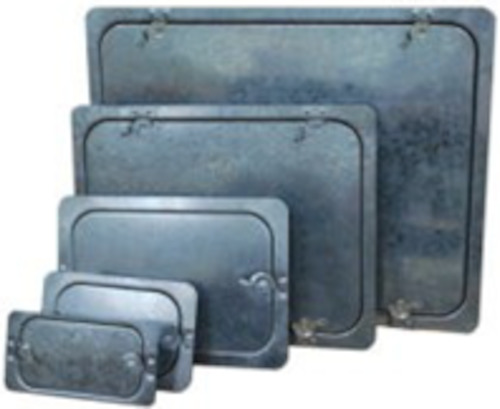

Access Door Insulated - Flat

Insulated Access Door or Access Panel for Rectangular or Square Duct

Easy Re-sealable Ways of Access to Rigid Air-Conditioning Ducts for Maintenance & Cleaning Purposes

Options Available - 0.8mm Galvanised Z275 Steel, Stainless Steel 316 or Hi Temperature

Insulated Double-skin, 25mm Sandwich Construction of Lift-off type

Removable Door with Extruded “Bulb-Type" Integral Gasket positioned door lower periphery

Removable Door is retained in Frame by Camlock to ensure a Positive Seal

Comes with a Chain to eliminate the door from falling, causing injury or damage when s ervicing

Air Leakage tested to HVAC DW/1429

Flat Insulated Access Doors are 25mm (R Value = 0.556 or 16kg/m3) Sandwich 0.8mm Galvanised Z 275 Steel construction with 1 piece Heat Welded PVC compression Gasket formed to ensure a Tight Seal. The Stainless Steel 316 & Hi Temperature Access Doors have an E Glass Fibre Rope (EGT16).

They are a Lift-off type having a minimum of 2 Retaining Camlock locks for fixing to Ductwork Frame. The Bulb-Type Integral Gasket ensures the removable Door is effectively Sealed.

Insulation: Thermal & Acoustic 25mm Fibreglass Insulation R0.556 is Airtight in Panel via a PVC Seal.

Click here for the Technical Data Sheet High Temperature.
