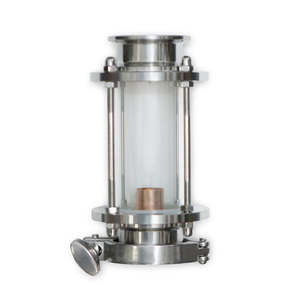

Still Spirits Create+ Sight Glass Bubble Plate

The Create Sight Glass Bubble Plate is designed for use with 2" tri-clamp compatible distilling systems. Bubble Plates are designed to promote reflux and provide visual feedback of the distillation process. Sight Glass made from 304 grade stainless steel and borosilicate glass.

Results may vary, depending on your individual set-up.

INSTRUCTIONS

KEY FEATURES

- Connects to 2" tri-clamp distilling accessories
- Copper Bubble Plate with stainless steel guide ramp
- Sight Glass: Borosilicate & 304 grade stainless steel construction
- High temperature resistant food grade silicone

WHATS INCLUDED

- Sight Glass
- Copper Bubble Plate with Silicone Flat Sea
- 2" Tri-clamp
- 2" Silicone Gasket

SPECIFICATIONS

- Dimensions: H 16.7 cm x W 5.1 cm x D 5.1 cm
- Plate WT 1 mm, diameter Ø50.0±0.2. Perforations approx. Ø 2mm.
- Weight: 1.116 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

We recommend external support if:

- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
