GC JetSkiFishing Retractable Spring-Loaded Transducer Bracket Beach launch with confidence – raise your transducer clear of harm, then deploy it once you're in deeper water.

Protect your investment while getting the best possible performance from your fish finder.

This spring-loaded, retractable transducer bracket is designed for the Lowrance Active Imaging 3-in-1 HD and non-HD transducers, along with most Garmin transducers and other similarly sized models.

An externally mounted transducer provides superior sonar performance compared with in-hull installations and allows you to utilise advanced fish finder features such as SideScan, SideVu, DownScan, and ClearVu. These features require an unobstructed view of the water and cannot be achieved with a traditional in-hull transducer installation.

The downside of any externally mounted transducer is that it remains exposed and vulnerable to damage during beach launches, retrievals, or when beaching your ski.

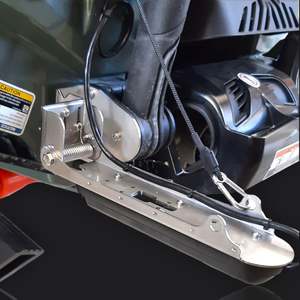

The GC JetSkiFishing Retractable Spring-Loaded Transducer Bracket solves this problem by allowing the transducer to be raised clear of potential damage when launching, retrieving, transporting, or operating in shallow water. Once you're safely in deeper water, the transducer can be lowered into its operating position without leaving your seat or getting your feet wet.

A solid adjustable stop sets the transducer's operating position and prevents water pressure or hull movement from forcing the transducer downward while underway. The spring-loaded design provides additional protection should the transducer encounter an underwater obstacle.

Integrated eyelets allow a simple rope system to be attached, making it easy to raise and lower the transducer whenever required. Features

Spring-loaded retractable design

Compatible with Lowrance Active Imaging 3-in-1 HD and non-HD transducers

Compatible with most Garmin transducers

Allows transducer deployment and retrieval from onboard the ski

Adjustable operating position stop

Integrated eyelets for raising and lowering system

Marine-grade stainless steel construction

Corrosion-resistant for harsh marine environments

Designed to work with GC JetSkiFishing boarding step transducer brackets Benefits

Protects your transducer during beach launches and retrievals

Allows full use of SideScan, SideVu, DownScan, and ClearVu sonar technologies

Improves fish finder performance compared with in-hull installations

Deploy and retrieve your transducer without entering the water

Spring-loaded design helps reduce the risk of transducer damage

Strong and reliable construction for offshore use Installation Notes

Designed to be used with GC JetSkiFishing boarding step transducer mounting brackets (sold separately).

A simple rope rigging system is required to raise and lower the transducer and can be created using a suitable length of rope attached to the bracket eyelets.

Due to the design of the Sea-Doo Fish Pro rear deck extension, the transducer can only be raised a limited distance when installed on Fish Pro models. What's Included

GC JetSkiFishing Retractable Spring-Loaded Transducer Bracket

Stainless steel mounting hardware

Note: Transducer, boarding step mounting bracket, and raising/lowering rope are not included and are sold separately.
