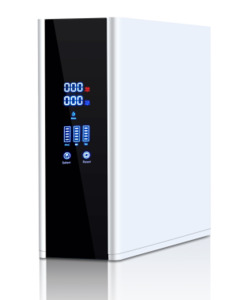

Aqua "Smart Purifier" Direct Flow Reverse Osmosis Black Friday Special

APPLICATIONS

- Point-of-Use Drinking Water
- Under Bench Installations
- Refrigerator Ice maker

GENERAL INFO

Introducing the latest in Reverse Osmosis Technology. The all new Aqua Direct Flow RO has been designed with space saving in mind with its super slim design also utilising the latest in Direct Flow technology which means no additional storage tank is required.
Direct Flow technology not only eliminates the need for an additional storage tank but it also means you have access to pure RO water on tap at all times, no running out of water or waiting for a storage tank to refill. The RO water is delivered through our superior and patented designer “Titanium Stainless Steel" tap (commercial grade) which operates with a simple easy quarter turn.

The new Aqua Direct Flow RO includes a high recovery Reverse Osmosis encapsulated membrane with a 1:1 Pure Water ratio ensuring the best performance and water saving possible. The system also includes a Poly Spun and Carbon Block as a pre-filter designed to reduce sediment, chlorine, odour and improve the overall taste also prolonging the life of the RO membrane. The RO membrane separates water molecules from dissolved salts and minerals producing the highest quality and most preferred drinking water. Invest in an Aqua Direct Flow RO system and discover the benefits in Reverse Osmosis technology and drink Clean, Pure, and Great Tasting Water today!

FEATURES BENEFITS

- Smart LCD Technology LCD Display shows Cartridge Life, Operation and TDS
- Quality Stainless Steel Drinking Tap for purity and peace of mind.
- Water Saving $$$ 1:1 Pure water ratio vs 4:1 (Traditional RO Technology)
- Innovative New Design with integrated water board to ensure high performance
- Under Bench Slim Unit with Quick Change Filter Technology
- Unique Space Saving “Super Slim" Design with ABS cover
- No additional post filter required i.e. extra cost
- Comes with an auto leak stop valve for zero flood risk
- Easy access for filter replacement and serviceability
- Highest quality water on demand and at your fingertips
- Reduces salts, dissolved minerals, bad taste and odor
- Designed for chlorinated and non-chlorinated potable drinking water
- 3/8" tubing from the system to the tap for high flow

SPECIFICATIONS & PERFORMANCE

Rated Voltage & Frequency 100V - 240V ~ 50/60Hz Rated Power 65 W Filtered Water Rate 2.1 lpm (approx) Inlet Water Pressure 0.1-0.4MPa Purified Water Rate 2.6 lpm Rated capacity of Purified Water 2000 litres Applicable conditions:

Temperature: 4-40°C,
Ambient humidity: below 90%

Product Size 440 mm (Depth) x 130 mm (Width) x 360 mm (Height) Water Source Municipal Water (Can be used on other water source subject to water analysis/other pre-treatment)

Note: Filtered Water Option applies to Dual/Tri-Flow Faucets only.

Cartridge replacement time

Cartridge PP Carbon Filter RO Membrane T33/Coconut
Carbon Cartridge Replacement Time 6 months 18 months 12 months

Attention:

Depending on the inlet water quality, please change 1st stage cartridge

accordingly.

When drinking water TDS increases rapidly, the RO membrane needs

to be changed soon.

T33 is for improving the taste of drinking water. if the water taste becomes bad

or when the cartridge life is expired, please replace the T33 cartridge.

CONNECTING TO YOUR COLD WATER LINE

Isolate the Cold Water Line. Turn off the water supply to the house if necessary.

If your cold water line is a flexi hose only use the take-off valve kit included. (See note further note below)

Unscrew the flexi hose leading to the Mixer Tap where it meets the cold water line.

Screw the female end of flexi take-off valve onto the male thread that is exposed. (Use Teflon tape if required)

Screw the flexi pipe back onto the female end of the flexi take-off valve. (Use Teflon tape if required)

Now connect the isolating valve using Teflon tape to the body of the flexi take-off valve.

Next connect the tubing supplied by placing the brass crox nut (in reverse) over the tubing, then insert the nylon spigot into the tube end and slide the nylon olive over the tubing.

Now insert the tubing into the isolating valve ensuring it is pushed all the way in and begin to turn the crox nut in a clockwise direction until it is tight.

NOTE: If there is no flexi hose fo
