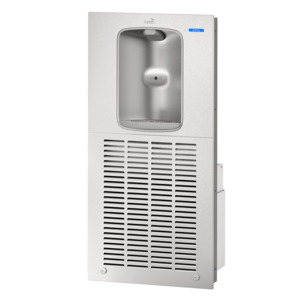

Oasis AquaPointe Contactless Bottle Filler, On-A-Wall Semi Recessed Mount.
Contactless, Non-Refrigerated or Refrigerated Bottle Filler
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
GENERAL INFO
AquaPointe MW8EBFY delivers chilled drinking water at a rate of 60 litres per hour, providing water at 10°C when the ambient temperature is 21°C. The cooling system uses environmentally-friendly R-134a or R-290a refrigerants.
AquaPointe MWEBFY provides ambient (room temperature) drinking water.
Both models are fully recessed bottle fillers featuring an electronic sensor for contactless (touch-free) activation, with an automatic 30-second shut-off timer. They include a convenient bottle counter that clearly displays usage, encouraging regular refilling of reusable sports bottles.
Key moulded components of AquaPointe units contain Freshield, a silver-based antimicrobial compound designed to inhibit the growth of microorganisms and mildew, thereby protecting surfaces from discolouration, odours, and degradation.
BOTTLE COUNTER
The Bottle Counter (included) conveniently displays the number of single-use plastic bottles saved by using the dispenser, encouraging eco-friendly habits and highlighting your commitment to environmental responsibility. Available in electronic bottle fillers, this real-time counter promotes regular refilling of reusable sports bottles, reducing plastic waste.
FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.
CONTACTLESS ACTIVATION
Contactless activation provides a hygienic, convenient, and safe way to access clean drinking water. By removing the need for physical touch, it significantly reduces the risk of cross-contamination. This touch-free feature is especially beneficial for high-traffic areas, ensuring users can access drinking water safely and confidently every time.
FEATURES - BENEFITS
- Sleek, contemporary design
- Enhanced alcove to fit larger sports bottle
- Contactless activation with shut-off timer
- Integrated bottle counter tracks and displays number of refills
- Key AquaPointe moulded components contain Freshield
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials and construction
- Heavy duty steel frame
- Built-in panel locks for easy access to chiller and filtration
- Cooling system uses R-134a or R-290a refrigerant
CERTIFICATIONS / COMPLIANCE
Together with ISO 9001:2015 and ISO 14001:2015, our lean manufacturing and system approach and well-trained staff continue our industry heritage.
Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD, EMC, RoHS). Shall comply with ANSI/NSF 61.
TECHNICAL SPECIFICATIONS
Model Code: MW8EBFY, MWEBFY
Activation: Contactless (Infrared Sensor)
Sensor Coverage: Up to 5 cm (approx.)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection: Not Included
Auto-Off Water Flow: Yes
Drainage Type: Built-in drain, Removable drip tray
Exterior Material: Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Cooling Performance: MW8EBFY only: 60 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temp)
Full Load Amps: 2.2A
Rated Watts: MW8EBFY: 347 W, MWEBFY: 7 W
Net Weight: MW8EBFY: 35 kg, MWEBFY: 12 kg
Power Supply: 220–240 V, 50 Hz
Dimensions: 1035(H) x 502(W) x 46(D) (287 recessed) mm
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC)
Warranty: 1 Year
