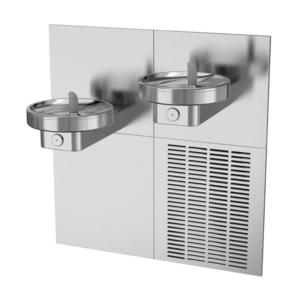

Oasis AquaPointe with Radii Modular In-Wall Split Level Drinking Fountain
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
GENERAL INFO
These surface-mounted hydration station combos offer two distinct activation options to suit your requirements.
MANUAL ACTIVATION
Both the bottle filler and drinking fountain can also be activated manually via easy-to-use push-buttons.
Each unit includes a convenient bottle counter, clearly displaying the number of bottles filled to encourage regular refilling and promote eco-friendly hydration habits. Key moulded components in these units incorporate Freshield, a silver-based antimicrobial compound designed to inhibit the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. The cooling systems utilise environmentally friendly R-134a or R-290a refrigerants.
BOTTLE COUNTER
The Bottle Counter (included) conveniently displays the number of single-use plastic bottles saved by using the dispenser, encouraging eco-friendly habits and highlighting your commitment to environmental responsibility. Available in electronic bottle fillers, this real-time counter promotes regular refilling of reusable sports bottles, reducing plastic waste.
FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.
CONTACTLESS ACTIVATION
Contactless activation provides a hygienic, convenient, and safe way to access clean drinking water. By removing the need for physical touch, it significantly reduces the risk of cross-contamination. This touch-free feature along with an automatic 30-second shut-off timer is especially beneficial for high-traffic areas, ensuring users can access drinking water safely and confidently every time.
FEATURES - BENEFITS
- M8CRY is the modular split-level drinking fountain with in the Oasis Radii series.
- M8CRY delivers 60LPH of 10°C water at 21°C ambient.
- This split-level drinking fountain is manually activated via the antimicrobial touch buttons.
- Standard Features:
- Fountain basin is designed to eliminate splashing and standing water
- Waterways are lead free in materials and construction
- Flexible bubbler guard
- Heavy gauge galvanised steel frame
- High efficiency cooling tank and coil
RADII MODELS
- ADA Compliant when installed in an alcove or with right and left wing walls
- Water flow stops after 30 seconds if user does not move away
CERTIFICATIONS/COMPLIANCE
Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD , EMC, RoHS). Shall comply with ANSI/NSF 61.
MODEL: M8CRY
Activation: Mechanical (touch-button)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection: Ultra Blu V (optional)
Auto-Off Water Flow: No
Drainage Type: Built-in drain, Removable drip tray
Exterior: Antimicrobial ABS Plastic, Antimicrobial copper touch points, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Dimensions: 1035(H) x 1003(W) x 483(D) mm (287 recessed)
Net Weight: 61 kg
Power Supply: 220-240V, 50/60 Hz
Cooling Performance: 60 LPH Rated Capacity Base Rate (10°C in 21°C amb. temp.)
Full Load Amps: 2.2A
Rated Watts: 340 W
Energy System: Refrigeration is on only when in use or if water temp increases during long period of standby.
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
Warranty: 1 Year
