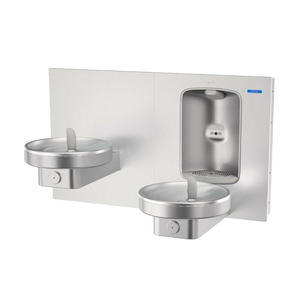

Oasis AquaPointe + Radii Combo In-A-Wall Recessed Split Level

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

GENERAL INFO
These surface-mounted hydration station combos offer two distinct activation options to suit your requirements:

Electronic Sensor Activation:
The bottle filler features a contactless (touch-free) electronic sensor for hygienic activation, along with an automatic 30-second shut-off timer.

Manual Activation:
Both the bottle filler and drinking fountain can also be activated manually via easy-to-use push-buttons.

Each unit includes a convenient bottle counter, clearly displaying the number of bottles filled to encourage regular refilling and promote eco-friendly hydration habits. Key moulded components in these units incorporate Freshield, a silver-based antimicrobial compound designed to inhibit the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. The cooling systems utilise environmentally friendly R-134a or R-290a refrigerants.

BOTTLE COUNTER
The Bottle Counter (included) conveniently displays the number of single-use plastic bottles saved by using the dispenser, encouraging eco-friendly habits and highlighting your commitment to environmental responsibility. Available in electronic bottle fillers, this real-time counter promotes regular refilling of reusable sports bottles, reducing plastic waste.

FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.

CONTACTLESS ACTIVATION
Contactless activation provides a hygienic, convenient, and safe way to access clean drinking water. By removing the need for physical touch, it significantly reduces the risk of cross-contamination. This touch-free feature is especially beneficial for high-traffic areas, ensuring users can access drinking water safely and confidently every time. FEATURES BENEFITS

BOTTLE FILLER

- AquaPointe Bottle Filler
- Built-in 100 micron strainer stops particles before they enter the waterway
- Large Alcove to fit most sports bottles
- Built in drain - no drip tray to empty
- High efficiency cooling tank and coil (Refrigerated model only)
- Energy-Efficient refrigeration system powers ‘ON’ only when in use or if water temp increases
- Waterways are Lead-Free in materials/construction
- Heavy duty galvanized steel frame
- Brushed stainless steel finish
- Programmable automatic shut off timer

DRINKING FOUNTAIN

- Radii Drinking Fountain
- Flexible one piece water saver bubbler guard
- Built-in 100 micron strainer stops particles
- Waterways are Lead-Free in materials/construction
- Antimicrobial flexible bubbler guard
- Heavy duty galvanized steel frame
- Brushed stainless steel finish
- High efficiency cooling tank and coil (Refrigerated model only)
- Energy-Efficient refrigeration system powers ‘ON’ only when in use or if water temp increases
- Built in Panel Locks for easy access to chiller and filtration

CERTIFICATIONS/COMPLIANCE

Together with ISO 9001:2015 and ISO 14001:2015, our lean manufacturing and system approach and well-trained staff continue our industry heritage.
Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD , EMC, RoHS). Shall comply with ANSI/NSF 61.

MODEL CODE: MMRSLSBF 507440

ACTIVATION: Bottle Filler: Manual (Touch-button) Drinking Fountain: Manual (Push-button)

FILTRATION: Green Filter (optional), Built-in 100 micron strainer

AUTO-OFF WATER FLOW: No

DRAINAGE TYPE: Built in drain, Removable drip tray

EXTERIOR: Antimicrobial ABS Plastic, Brushed Stainless Steel

CHASSIS: Heavy Duty Galvanised Steel

DIMENSIONS: 591(H) x 1003(W) x 470(D) (89 recessed)

ALCOVE HEIGHT: 330 mm

NET WEIGHT: 32 kg

POWER SUPPLY: -

COOLING PERFORMANCE: Non-Refrigerated

FULL LOAD AMPS: -

RATED WATTS: -

ENERGY SYSTEM: -

COUNTRY OF ORIGIN: Mexico
