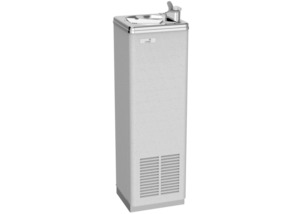

Oasis Compact Free-Standing Water Cooler
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices. Ideal for high-traffic areas and heavy-use applications
GENERAL INFO
The pressure drinking water cooler is designed to deliver at least 34 Litres per hour (l/h) of water at 10°C, cooled from an inlet temperature of 26.7°C, with an ambient temperature of 32.2°C.
The bubbler features a flexible guard, a non-splash design, and a lever handle to activate water flow. It provides a smooth, steady stream via an integral regulator, operating at supply pressures between 20 and 120 psi.
The high-efficiency, tank-type evaporator is fully encapsulated in insulation. The R-134a refrigeration system is hermetically sealed, with refrigerant flow controlled by a capillary tube. An adjustable thermostat with an ‘off’ position regulates the refrigeration system.
The stainless-steel top incorporates an integral drain strainer. Exterior panels are manufactured from powder-coated galvanised steel (standard finish) or stainless steel (optional finish).
All potable water system components comply with the Safe Drinking Water Act Amendments and the 1988 Lead Contamination Control Act, and are certified to NSF/ANSI 61, Section 9. Chilled water capacity is rated in accordance with ARI Standard 1010.
This cooler is UL Listed to U.S. and Canadian safety standards.
FEATURES BENEFITS
- Waterways are Lead-Free in materials and construction
- Bubbler with activation lever
- Stainless steel top
- Heavy-gauge steel cabinet with seperate galvanized steel base
- High-efficiency cooling tank and coil.
- Refrigerant R-134a
- Limited 5-year warranty
Model
- P10CP delivers 10.0 gph of chilled drinking water
Finishes
- 506642, Greystone Finish
- 502697, Sandstone Finish
- 502698, Stainless Steel Finish (at additional cost)
Options
- Push Handle glass filler 029603-004
- Push Down glass filler 029603-006
- 031505-001 required for Field installation of glass fillers
- Foot pedal operated
Installation
Prior to roughing-in, consult local, state and federal codes
Shipped with complete instructions
50° F Drinking Water
90° F Ambient Air Temp
Rated Capacity GPH 10.0
Base Rate GPH 10. 0
Pre-Cooler No
Hot ’N Cold™ Model No
115 Volts, 60 HZ
Compr. HP 1/3
Full Load Amps 5.6
Rated Watts 510
Glass Filler Acc. Option Yes
Cabinet Color Finish Yes
Net Wt. Approx. 70 Lbs
Specifications subject to change without notice
Industry Standard Rating Condition 80°F inlet water temperature.
Special export models available, operable on 220-240 volts, 50/60 Hertz. cULus certification not applicable.
