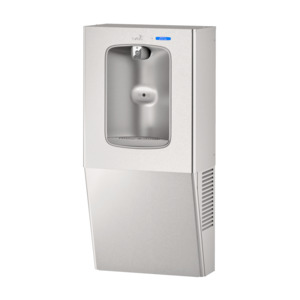

Oasis Conversion Kit Contactless, Refrigerated, Cooler to Bottle Filler

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

GENERAL INFO
The AquaPointe PN8EBFY is a surface mount unit that delivers chilled drinking water.
This refrigerated bottle filler is ideal for high-traffic areas.
With contactless, touch-free activation, it reduces the risk of cross-contamination.
BOTTLE COUNTER
The Bottle Counter (included) displays the number of single-use plastic bottles saved, encouraging eco-friendly habits. Available in electronic bottle fillers, it promotes regular refilling of reusable bottles to reduce plastic waste.
FRESHIELD
Freshield antimicrobial protection is integrated into key components for durability. This silver ion-based compound inhibits the growth of microorganisms and mildew, helping protect surfaces from odours, discolouration, and degradation—ideal for hygiene-critical environments.
CONTACTLESS ACTIVATION
Touch-free activation offers a hygienic, safe, and convenient way to access clean drinking water. Perfect for busy areas, it helps prevent cross-contamination and gives users peace of mind.
FEATURES - BENEFITS

- Sleek, contemporary design
- Enhanced alcove accommodates larger sports bottles
- Contactless activation with shut-off timer (bottle filler)
- Integrated bottle counter tracks and displays refills
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles
- Lead-free waterways
- Heavy-duty steel frame
- Refrigerated

CERTIFICATIONS / COMPLIANCE
Together with ISO 9001:2015 and ISO 14001:2015, Oasis continues its industry heritage with lean manufacturing and trained staff.

- Complies with ANSI A117.1 and ADA
- CE compliant (LVD, EMC, RoHS)
- ANSI/NSF 61 certified
- WRAS approved

TECHNICAL SPECIFICATIONS

Model Code
PN8EBFY 507126E

Activation
Contactless (Infrared sensor)

Filtration
Green Filter (optional), Built-in 100 micron strainer

Auto-Off Water Flow
No

Drainage Type
Built-in drain, Removable drip tray

Exterior
Antimicrobial ABS Plastic, Brushed Stainless Steel

Chassis
Heavy Duty Galvanised Steel

Dimensions
960.2(H) x 453.2(W) x 331.8(D) mm

Alcove Height
330 mm

Net Weight
11.8 kg

Power Supply
220-240V, 50/60 Hz

Cooling Performance
60 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temp)

Full Load Amps
2.2A

Rated Watts
340 W

Energy System
Refrigeration is on only when in use or when water temp increases during long standby

Country of Origin
Mexico

Certifications
ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS), WRAS

Warranty
1 Year
