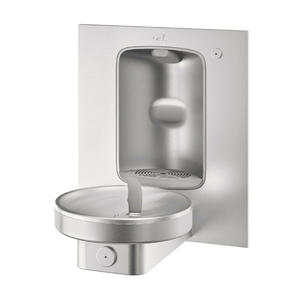

Oasis Manual Non-Refrigerated Hydration Station Combo Surface Mount
Surface Mount Hydration Station – Manual, Non-Refrigerated
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
GENERAL INFO
The M140RSBF surface-mount hydration station combo is manually activated. The bottle filler operates via touch-button, and the drinking fountain is activated with a push-button. This model delivers ambient (non-refrigerated) drinking water.
Freshield antimicrobial protection utilises a silver-based compound to reduce the growth of microorganisms and mildew. This helps protect surfaces from discolouration, odours, and degradation, making it ideal for high-traffic environments. Freshield is a key component in all OASIS Bottle Fillers.
BOTTLE COUNTER
The included Bottle Counter displays the number of single-use plastic bottles saved, promoting environmentally friendly behaviour by encouraging the use of reusable bottles.
FRESHIELD
Freshield is engineered into key components using a silver ion-based antimicrobial compound. It inhibits microorganism and mildew growth, protecting surfaces and enhancing hygiene in high-use areas.
FEATURES - BENEFITS
- Sleek, contemporary design
- Enhanced alcove accommodates larger sports bottles
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before entering the waterway
- Lead-free waterways in materials and construction
- Heavy-duty steel frame
- Non-Refrigerated – delivers ambient water
- Built-in panel locks for easy access to chiller and filtration
- Radii Drinking Fountain activated by vandal-resistant mechanical push-button
- Basin design eliminates splashing and standing water
CERTIFICATIONS/COMPLIANCE
- ISO 9001:2015 and ISO 14001:2015 compliant manufacturing
- Complies with ANSI A117.1 and ADA
- Complies with CE directives (LVD, EMC, RoHS)
- ANSI/NSF 61 certified
- WRAS compliant
TECHNICAL SPECIFICATIONS
Model Code: M140RSBF 507453
Activation:
Bottle Filler – Manual (Touch-button)
Drinking Fountain – Manual (Push-button)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Auto-Off Water Flow: No
Drainage Type: Built-in drain, Removable drip tray
Exterior: Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Dimensions: 591(H) x 502(W) x 483(D) mm (90 mm recessed)
Alcove Height: 330 mm
Net Weight: 21 kg
Power Supply: Not applicable
Cooling Performance: Non-Refrigerated
Full Load Amps: Not applicable
Rated Watts: Not applicable
Energy System: Not applicable
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS), WRAS
Warranty: 1 Year
