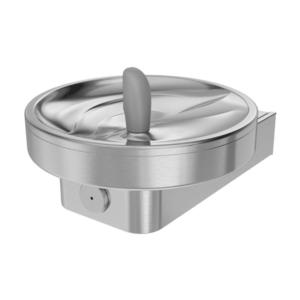

Oasis Manual Surface Mount Radii Drinking Fountain

F140R – Surface-Mount Drinking Fountain (Manual, Non-Refrigerated)

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

GENERAL INFO
The F140R delivers ambient drinking water. This drinking fountain is manually activated via the antimicrobial touch-button.
Stylish and compact, it's ideal for high-traffic areas and locations where space is limited.
Radii™ bi-level modular water coolers meet the needs of both physically challenged and able-bodied users.

FEATURES - BENEFITS

- Flex bubbler
- ADA compliant when installed in an alcove or with right and left wing walls
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials and construction
- Brushed stainless steel finish
- Heavy duty galvanized steel mounting frame
- Electric eye models are sensor-equipped for automatic operation
- Water flow stops after 30 seconds if user does not move away
- Bi-level models are field reversible

CERTIFICATIONS/COMPLIANCE

- Complies with ANSI A117.1 and ADA
- Complies with CE directives (LVD, EMC, RoHS)
- Complies with ANSI/NSF 61

TECHNICAL SPECIFICATIONS
Model Code: F140R
Activation: Mechanical (Touch-button)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection: Ultra Blu V (optional)
Auto-Off Water Flow: No
Drainage Type: Built-in drain, Removable drip tray
Exterior: Antimicrobial ABS Plastic, Antimicrobial copper touch points, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Dimensions: 209(H) x 356(W) x 470(D) mm
Net Weight: 8.2 kg
Power Supply:
Cooling Performance: Non-Refrigerated
Full Load Amps:
Rated Watts:
Energy System:
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
Warranty: 1 Year
