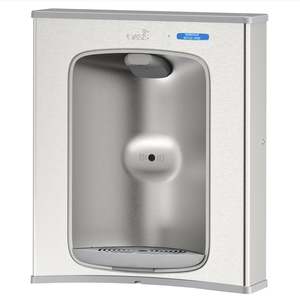

Oasis VersaFiller Contactless Bottle Filler Retrofit Kit
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
GENERAL INFO
The VersaFiller PWEBFY Retrofit Kit provides ambient drinking water. This bottle filler features an electronic sensor for contactless (touch-free) activation and includes a 30-second automatic shut-off timer. The bottle counter conveniently displays the number of times the unit has been used, encouraging users to refill their sports bottles. Key moulded components of the VersaFiller bottle filler contain Freshield, a silver-based antimicrobial compound that inhibits the growth of microorganisms and mildew, protecting surfaces from discoloration, odours, and degradation.
FEATURES - BENEFITS
- Sleek, contemporary design
- Contactless bottle filler, retrofittable to your drinking fountain
- Retrofit Kit delivers ambient drinking water
- Contactless activation with 30-second shut-off timer
- Enhanced alcove to fit larger sports bottle
- Integrated bottle counter tracks and displays number of refills
- Key AquaPointe bottle filler moulded components contain Freshield
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials and construction
- Heavy duty steel frame
- Built-in panel locks for easy access to chiller and filtration
CERTIFICATIONS / COMPLIANCE
Together with ISO 9001:2015 and ISO 14001:2015, our lean manufacturing and system approach and well-trained staff continue our industry heritage.
Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD, EMC, RoHS). Shall comply with ANSI/NSF 61.
TECHNICAL SPECIFICATIONS
Model Code: PWEBFY 507000
Activation: Contactless (Infrared Sensor)
Sensor Coverage: Up to 5 cm (approx.)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection:
Auto-Off Water Flow: Yes
Drainage Type: Built-in drain, Removable drip tray
Exterior Material: Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Cooling Performance: Non-Refrigerated (Ambient)
Full Load Amps: 0.1 A
Rated Watts: 7 W
Net Weight: 5 kg
Power Supply: 220–240 V, 50 Hz
Dimensions: 480(H) x 413(W) x 144(D) mm
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC)
