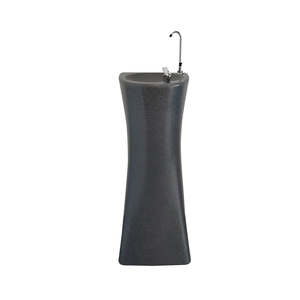

Waterworks “Plumbed-In” Fountain Cooler With Bottle Filler/Faucet

Please Note: Excludes Filter System

APPLICATIONS
Public areas such as schools, gyms, offices, factories, construction and mining sites.

GENERAL INFO
RUST PROOF CABINET
The new IP33 rating gives extra protection against dust, dirt and moisture, making the RM33 Blizzard perfect for construction sites, schools and mines. Unit must be
protected from the elements.
TANK
1.9litre stainless steel tank.
SERVICE ACCESS
The front access panel is secured with four concealed stainless steel screws. Removal of this panel provides access for any purpose including service, maintenance and filter
replacement.
VANDAL RESISTANCE
The RM33 Blizzard has a one piece rota moulded polyethylene cabinet which can be easily anchored to almost any surface. Along with the internally fitted drain, this provides unequalled vandal resistance.

FEATURES - BENEFITS

NEW IP33 RATING
✓ Designed in Australia by Waterworks®
✓ 100% rust proof cabinet
✓ Impact resistant construction
✓ 30L of chilled water per hour
✓ Optional bottle filler
✓ Optional filtration
✓ Expansion valve to protect from mains water pressure surges
✓ 12 Month comprehensive warranty

OPTIONAL FEATURES

Filtration
An internal or external Waterworks filter will reduce sediment, chemicals, organic compounds and impurities which can adversely affect the quality and taste of your
drinking water. If a filter is required, please specify on order.
TEMPORARY DRAIN KIT
1.5mtr temporary drain kit is available for temporary installations such as construction sites

INSTALLATION CONNECTIONS:

ELECTRICAL
A 1.5 metre power cord with standard 3 pin plug is provided.
Power consumption Ambient Temp 25deg. (kw.h/24h) 0.044.
Power cord inlet 300mm from base on rear of unit.
WATER INLET
The inlet is an industry standard 1/2" female BSP threaded connection situated on the rear of the cooler, (see installation instructions for exact rough in details).
DRAIN OUTLET
The drain outlet and integrated p-trap provide an industry standard 40mm connection situated on the rear of the cooler. (see installation instructions for exact rough in
details).
To be installed in accordance with local plumbing laws. Failure to install a certified Pressure Limiting Valve will void warranty.

WARRANTY:
The warranty provides comprehensive parts and labour
coverage for the period of 12 months from the date of
original sale.
SHIPPING DETAILS:
PACKED WEIGHT: 28kg
PACKED VOLUME: 0.208M3
PACKED DIMENSIONS: 420mmW x 420mmD x 1180mmH

CAPACITY:
AMBIENT TEMP 32°C
INLET TEMP 27°C
LITRES/HR 10°C WATER30 LPH
RESERVOIR VOLUME 1.9 Litre
Based on intermittent use under environmental conditions of
ARI Standard 1010 and installation requirements of ARI Standard 1020.
Due to our policy of continuous development, specifications are
subject to change without notice.
Colour is as close to actual as printing processes allow.
