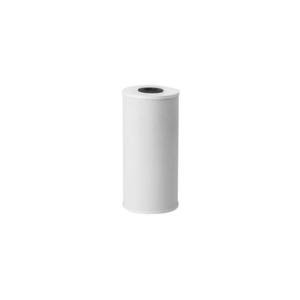

Radial Flow Carbon Cartridges Pentair RFC Series Cartridges
APPLICATION
Pentair®Pentek® RFC Series Cartridges are available in a wide variety of sizes and are ideal for point-of-entry (POE) and other high flow rate applications, with the benefit of reducing carbon fines.
GENERAL INFO
Pentair®Pentek® RFC Series Radial Flow Carbon Cartridges are constructed with a 70-micron porous polyethylene outer shell and durable polypropylene endcaps.
The 2-3 ⁄ 4" outer diameter cartridges have a polypropylene core and the 4-1 ⁄ 2" outer diameter cartridges incorporate a spun polypropylene core.
Sandwiched between the outer shell and the core is a bed of Granular Activated Carbon (GAC).
The unique radial flow design offers the benefits of Granular Activated Carbon (GAC) filtration, such as low pressure drop, while at the same time significantly reducing the release of carbon fines commonly associated with GAC-style cartridges.
FEATURES BENEFITS
- Provides effective chlorine taste & odour reduction
- Unique design reduces carbon fines in filtered water
- Ideal for point-of-entry (POE) and other high flow rate applications
- Available in a wide variety of sizes
- Micron Rating: 5
Based on manufacturer’s internal testing
The RFC-BB and RFC20-BB are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material requirements only.
SPECIFICATIONS
- Filter Media: Granular Activated Carbon
- Outer Shell: Polyethylene
- Endcaps: Polypropylene
- Gaskets: Buna-N
- Core: Polypropylene
- Temperature Rating: 40-125°F (4.4-51.7°C)
SKU #:RFC-SL
DIAMETER: 2.5"
MAXIMUM DIMENSIONS: 2.88" x 20" (73 mm x 508 mm)
RATING (NOMINAL): 5 micron
INITIAL ∆P (PSI) @ FLOW RATE (GPM) : 0.60 psi @ 2 gpm (0.04 bar @ 7.6 Lpm)
CHLORINE TASTE & ODOUR REDUCTION @ FLOW RATE (GPM) :>10,000 gallons @ 2 gpm (37,854 L @ 7.6 Lpm)
SKU #:RFC-B
DIAMETER: 4.5"
MAXIMUM DIMENSIONS: 4.50" x 9.75" (114 mm x 248 mm)
RATING (NOMINAL): 5 micron
INITIAL ∆P (PSI) @ FLOW RATE (GPM) :0.90 psi @ 2 gpm (0.06 bar @ 7.6 Lpm)
CHLORINE TASTE & ODOUR REDUCTION @ FLOW RATE (GPM) :>50,000 gallons @ 2 gpm (189,270 L @ 7.6 Lpm)
SKU #:RFC-J
DIAMETER: 4.5"
MAXIMUM DIMENSIONS: 4.50" x 20" (114 mm x 508 mm)
RATING (NOMINAL): 5 micron
INITIAL ∆P (PSI) @ FLOW RATE (GPM) :0.90 psi @ 4 gpm (0.06 bar @ 15.1 Lpm)
CHLORINE TASTE & ODOUR REDUCTION @ FLOW RATE (GPM) :>100,000 gallons @ 4 gpm (378,541 L @ 15.2 Lpm)
