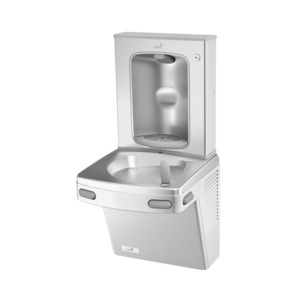

Oasis Versafiller with VersaCooler Mechanical Combo

Please Note: Excludes Filter System

APPLICATIONS
Suitable for public building, gymnasiums, sports complexes, hospitals, schools and offices.

GENERAL INFO
The is a surface mount hydration station combo that is manually activated. The bottle filler requires a push of the touch-button, while the drinking fountain is activated via the vandal-resistant touch-button. Delivering ambient drinking water.

VersaFiller P8SBFY is a surface mount hydration station combo that delivers chilled drinking water. The unit is manual activated.

FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.

FEATURES - BENEFITS

- Sleek, contemporary design
- Enhanced alcove to fit larger sports bottle
- Key bottle filler moulded components contain Freshield
- Built in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials & construction
- Heavy duty steel frame
- Non-Refrigerated, delivers Ambient Water
- Built in Panel Locks for easy access to chiller and filtration
- The VersaCooler Drinking Fountain is activated by the vandal resistant touch button.
- The basin is designed to eliminate splashing and standing water
- Refrigerated Models deliver Chilled Water

Vandal Resistance Models Only:

- The drinking fountain is activated via the vandal-resistant push-button

CERTIFICATIONS/COMPLIANCE

- Complies with ANSI A117.1 and ADA. Complies with all relevant CE directives (LVD, EMC, RoHS). Complies with ANSI/NSF 61.
- ADA compliant for both adult or child when properly installed

ADDITIONAL OPTIONS

- Remote Chiller
- Filtration System (internal/external)

Reduce sediment, chemicals, organic compounds and impurities which can adversely affect the quality and taste of your drinking water.

MODEL CODE: P8SBF 501965E 507012: PSBF 507305

ACTIVATION: Bottle Filler: Manual (Touch-Button) Drinking Fountain: Manual (Four push-pads)

FILTRATION: Green Filter (optional), Built-in 100 micron strainer

AUTO-OFF WATER FLOW: No:

DRAINAGE TYPE: Built in drain, Removable drip tray

EXTERIOR: Antimicrobial ABS Plastic, Brushed Stainless Steel

CHASSIS: Heavy Duty Galvanised Steel

DIMENSIONS: 960(H) x 413(W) x 473(D)

ALCOVE HEIGHT: 330 mm

NET WEIGHT: 31 kg: 16 kg

POWER SUPPLY: 220-240V, 50/60 Hz: -

COOLING PERFORMANCE: 60 LPH Rated Capacity & Base Rate (10°C in 21°C amb. temp.): Non-Refrigerated

FULL LOAD AMPS: 2.2A: -

RATED WATTS: 450 W: -

ENERGY SYSTEM: Refrigeration is on only when in use or if water temp increases during long period of standby.: -

COUNTRY OF ORIGIN: Mexico:

CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS), WRAS

WARRANTY: 1 Year:

MODEL CODE: P8SBFY 501965E 507012: PSBF 507305
