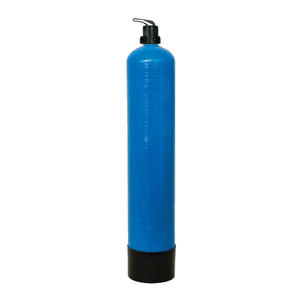

De-Ionising System with Manual Head
- Laboratories
- Dentists GENERAL INFO
De-Ionisation is a physical process that uses specially manufactured ion-exchange resins that bind to and filter out the mineral salts from water. The majority of water impurities are from dissolved salts. De-Ionisation produces high purity water that is generally similar to distilled water, and this process is quick and without the problems associated with scale build-up. This high purity De-Ioniser scavenges all remaining mineral salts from a water supply in exchange for hydroxyl ions (which convert back to pure water).
FEATURES BENEFITS
Achieves low operational costs and long periods between resin changes. It uses high quality, non regenerating, mixed bed resin and is suitable for small to medium flows.
SEDIMENT PRE-FILTRATION
Sediment pre-filtration is advisable to optimise resin life. Especially those applications with significant levels of suspended solids.
STRUCTURAL® POLYGLASS TANK
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels were designed to provide you with years of worry-free performance.
OPERATING PARAMETERS (TANK)
- Maximum operating pressure – 150 psi
- Maximum operating temperature – 49°C
AUTOTROL® 263-268 (INTELLIGENT CONTROL VALVE)
- Time-tested Duraflow flapper provides frictionless sealing for longer service life
- Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
- Optical sensor for precision cycle positioning
- Designed with double backwash for reduced hardness leakage
- Fully adjustable 5 or 8 cycle control for an efficient and reliable water treatment system
- Continuous service flow rate of 95 LPM with a backwash of 76 LPM
- Backwash capability accommodates filter up to 18" in diameter
- Supercapacitor for keeping time of day during a power outage
- Environmental protective cover for water resistance, corrosion resistance, and UV stability
Programming is stored in memory and will not be lost due to power outages
- History data for valve performance
NOTE: Inlet/Outlet Head available for 7" - 9" Tanks
DE-IONISING SYSTEM
MEDIA
QUANTITIES
Code
- Tank Size Inches (DxH)
Typical Flow Rate
Inlet/Outlet
Mixed Bed Resin
(WTMBR)
“Polywound" Tanks
Litres/Minute
Inches
Litre
DIM-717
"Upflow Head" - 7" x 17"
3/4"
8
DIM-735
“Upflow Head" - 7" x 35"
3/4"
15
DIM-935
“Upflow Head" - 9" x 35"
3/4"
25
DIA-1054
“Autotrol Head" - 10" x 54"
1"
50
DIA-1252
"Autotrol Head" - 12" x 52"
1"
70
DIA-1465
“Autotrol Head" - 14" x 65"
1"
115
DIA-1665
“Autotrol Head" - 16" x 65"
1"
150
AUTOTROL HEAD
“PENTAIR" 263 Performa Filter Valve with 742F Logix Time Clock Controller
Valve Body
Glass-filled thermoplastic - NSF listed material
Rubber Components
Compounded for cold water – NSF Listed material
Operating Pressure
20-120 psi (1.38-8.27 bar)
Maximum operating pressure
150 psi
Maximum operating temperature
120° F
Hydrostatic Pressure
300 psi (20.69)
Water Temperature
2°- 38°C
Ambient Temperature
2°- 48.9°C
Tank Thread
2-1/2" – 8, male
Inlet/Outlet Threads
1-3/4"-12 UNC-2A male
Drain Line
3/3" NPT, male
Width x Height
37.8 cm x 21.5 cm
Riser Tube Dia.
27 mm
Riser Height Above top of tank
0.5" ( /- 0.5")
Service flow rate
5 psi (1.03 bar) drop 25.0 gpm (5.7 m3/h)
Backwash flow rate
25psi (1.72 Bar) drop 20.0 gpm (4.5 m3/h)
Service
Cv = 6.50 (Kv = 5.6)
Backwash
Cv = 4.00 (Kv = 3.5)
Controller Operating Voltage
12 volt– AC
Input Supply Frequency
50 or 60 H
