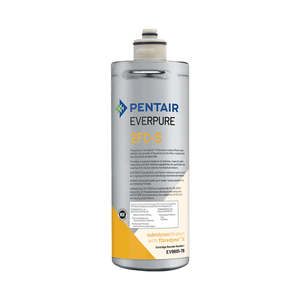

Everpure 2FC-S Commercial Grade Cartridge High Flow

The 2FC-S may be used as a higher capacity and longer life alternative to the PBS-200 and EF-1500 water filter.

Applications

- Steam and combi ovens
- Coffee

The Everpure 2FC-S EV9691-76 water filter cartridge is a genuine OEM product made in the USA.

It improves water quality and taste for beverages, including fountain drinks, and is part of Everpure’s premium FC series for high-flow, superior performance.
May be used as a higher-capacity, longer-life alternative to the Everpure PBS-200.

Reduces

- Lead
- Chlorine taste and odour
- Chloramines
- Particulates, dirt, and sediment
- Lime, scale, rust, and corrosion
- Cysts such as Cryptosporidium and Giardia (NSF/ANSI Standard 53)
- Pseudomonas diminuta (validated to 0.2 μm under ISO 17025 ASTM F838-05 protocol)

Lead reduction claim to be confirmed against Pentair datasheet for EV9691-76.

Features and Benefits

Increased capacity for extended reduction of chemical and mechanical contaminants.

Proprietary Pentair™ Everpure™ Fibredyne™ II filtration media inhibits bacterial growth on the filter media, extending product life.

Microfiltration removes particles down to 0.5 microns (validated to 0.2 μm under ISO 17025 lab testing).

Reduces particulates, chloramines, chlorine taste and odour, improving beverage flavour, consistency, and carbonation retention.

Integrated beaded phosphate helps prevent limescale build-up, reducing equipment downtime.

Quick-change sanitary cartridge design for easy, clean replacements.

Compatible with QC7I Single, QL1, and QL3B heads.

The 2FC-S may be used as a higher capacity and longer life alternative to the Everpure PBS200 water filter.

- Everpure 2FC-S EV9691-76 Part Numbers:
- Everpure 2FC-S EV9691-76 water filter is also known by, replaces, or is an alternative to these other filter part numbers:
Everpure 2FC-S - EV9691-76 - 2FCS - EV9691-76 - PBS200
- NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means NSF Certified under NSF/ANSI Standards 42 and 53

Certifications

NSF/ANSI Standards 42 and 53

ISO 17025-accredited laboratory validation for 0.2 μm bacteria reduction

2FC-S Replaces these filters:

ADC (EV959206)

S-54 / S54 (EV972006)

OCS, OCS2

WFA12 / WFA-12

H-54 / H54 (EV925267)

PBS-200 / PBS200

OW2 Plus

Fits QL2-WPS

Specifications

Dimensions: 260H × 82D mm

Flow rate: Maximum 5.67 L/min

Rated capacity: 6,000 gallons (22,712 L)

Pressure: 10–125 psi (0.7–8.6 bar)

Temperature: 2–38°C

Filter media: Granular Activated Carbon with proprietary Fibredyne™ II

Micron rating: 0.5 μm nominal (validated to 0.2 μm)

Filter life: 22,712 L or 12 months (change earlier if pressure falls below 10 psi)

Ship weight: 1.0 kg

Replacement cartridges: 1-pack

Installation Tips

Install vertically with the cartridge hanging down.

Allow 7 cm clearance below for replacement.

Flush for 5 minutes after installation or cartridge change.

Follow manufacturer’s instructions for installation and maintenance.

Operation Tips

Replace cartridge when flow slows noticeably or when rated capacity is reached.

Change at least once a year.

Always flush after installation or replacement.
