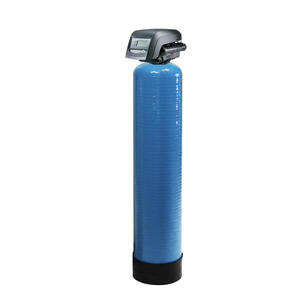

Multi-Media Sand Filter System with Autotrol Head

- Residential/Lifestyle/Commercial
- Restaurants
- Industry & Factory
- Tropical and Indigenous Fish Outlets/ Breeders
- Poultry Farms
- Hydroponics
- Breweries
- Colour reduction in supply water
REMOVES/REDUCES

- Grit, sediment, turbidity and organic matter but also where there is a problem with oxidised iron (‘rust’) and other precipitated contaminants such as manganese or scale particles.
- Chlorine GENERAL INFO

Multi-Media Sand Filters are used where it is necessary to treat all incoming water (point of entry - POE) in large volume for the removal of grit, sediment, turbidity, and organic matter and also where there is a problem with oxidised iron (rust) and other precipitated contaminants such as manganese or scale particles.
Multi-Media Sand Filters normally consist of three media layers (i.e. Support base gravel, micro screened sand and anthracite) and are a very economical means of primary filtration to remove the bulk of suspended solids. They are particularly efficient on surface waters.
Multi-Media Sand Filters are periodically back washed (either automatically or manually) by simply reversing the flow and this flushes to waste the accumulated sediment and also regrades the filter media layers. Also used to remove Chlorine for people with sensitive skin.
STRUCTURAL® POLYGLASS TANK

Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels were designed to provide you with years of worry-free performance.
OPERATING PARAMETERS (TANK)

- Maximum operating pressure – 150 psi
- Maximum operating temperature – 49°C
AUTOTROL® 263-268 (INTELLIGENT CONTROL VALVE)

- Time-tested Duraflow flapper provides frictionless sealing for longer service life
- Fiber-reinforced polymer valve body for superior strength and durability,
non-corrosive, and UV-resistant
- Optical sensor for precision cycle positioning
- Designed with double backwash for reduced hardness leakage
- Fully adjustable 5 or 8 cycle control for an efficient and reliable water treatment system
- Continuous service flow rate of 95 LPM with a backwash of 76 LPM
- Backwash capability accommodates media tank up to 18" in diameter
- Supercapacitor for keeping time of day during a power outage
- Environmental protective cover for water resistance, corrosion resistance, and
UV stability
- Programming is stored in memory and will not be lost due to power outages
- History data for valve performance

AUTOTROL HEAD

“PENTAIR" 263 Performa Filter Valve with 742F Logix Time Clock Controller

Valve Body

Glass-filled thermoplastic - NSF listed material

Rubber Components

Compounded for cold water – NSF Listed material

Operating Pressure

20-120 psi (1.38-8.27 bar)

Hydrostatic Pressure

300 psi (20.69)

Water Temperature

2°- 38°C

Ambient Temperature

2°- 48.9°C

Tank Thread

2-1/2" – 8, male

Inlet/Outlet Threads

1-3/4"-12 UNC-2A male

Drain Line

3/3" NPT, male

Width x Height

37.8 cm x 21.5 cm

Riser Tube Dia.

27 mm

Riser Height Above top of tank

0.5" ( /- 0.5")

Service flow rate

5 psi (1.03 bar) drop 25.0 gpm (5.7 m3/h)

Backwash flow rate

25psi (1.72 Bar) drop 20.0 gpm (4.5 m3/h)

Service

Cv = 6.50 (Kv = 5.6)

Backwash

Cv = 4.00 (Kv = 3.5)

Controller Operating Voltage

12 volt– AC

Input Supply Frequency

50 or 60 Hz

Moter Input Voltage

12 volt– AC

Controller System Power Consumption

3 watts average

Transformer Output Voltage

12 volt– AC 400mA

Transformer Input

230 volt– AC 50/60 Hz

Recommend use of outdoor cover for direct sunlight applications OPERATION AND MAINTENANCE

Operation and maintenance are simple: Backwash for 5 - 10 minutes once every week this is done either automatically or manually. Replace media every 2-3 years.

MULTI-MEDIA SAND FILTER SYSTEM

MEDIA QUANTITIES

Code

- Tank Size Inches (DxH)

Typical Flow Rate DOUBLEBRE
