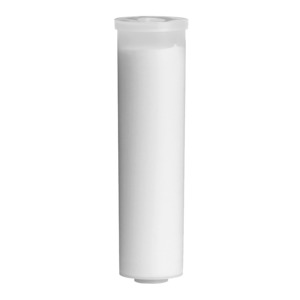

Everpure HT-10 Cartridge High Temperature/Scale Reducing

The HT-10 cartridge provides scale prevention and corrosion control for warewashing equipment, to be used with the HTS-11 Kleenware system.

- Commercial dishwashers
- Commercial glassware washers
- Warewashing booster heaters
FEATURES BENEFITS

- High capacity, high temperature scale reducing cartridge removes existing scale deposits in warewashing machines and booster heaters.
- Effective up to 77 °C, protects against corrosion and helps prevent future build-up of scale.
- Clear cartridge provides visual monitoring of product usage.
- Replacement cartridge for HTS-11 Kleenware System. SPECIFICATIONS

- Overall Dimensions: 24.77 cm H x 9.2 cm W x 9.2 cm Diameter
- Service Flow Rate: Maximum 56.7 Lpm
- Pressure Requirements: 150 psi (10.34 bar)
- Max Temperature: 77°C
- Rated Capacity: 228,000 Litres
INSTALLATION TIPS

- Must be used with the HTS-11 system as a unit (i.e. high temperature bowl, head and cartridge)
- Install vertically using the mounting bracket provided
- Use 3/4" (1.9 cm) water line and observe proper inlet/outlet water directions
- Some pressure relief mechanism should be provided downstream of the system to permit releasing line pressure when changing cartridges
- Deliming of equipment prior to installation is recommended, but not required
OPERATION TIPS

- Inspect HT-10 cartridge at least every 6 months for replacement
- Pre-existing equipment scale may be dislodged and settle to the bottom of a chamber which can clog drain initially.
- Remove any settled scale
- In new installations, the HydroBlend usage rate may start high, but will be reduced as existing scale is removed
- Replace HT-10 cartridge before HydroBlend™ compound is completely used up
