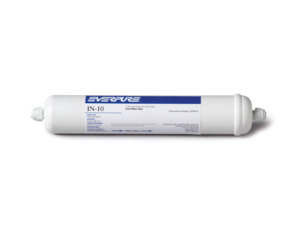

Everpure IN-10 In-Line Filter with Scale Inhibitor - Threaded

EVERPURE® IN-10 In-Line Filter with Scale Inhibitor - Threaded APPLICATION

- Provides Clear, Fresh, Quality Ingredient Water For Coffee, Espresso, and Ice Applications
- For low volume single pot coffee brewers FEATURES BENEFITS

- Granular activated carbon 10" in-line design
- Delivers enhanced chlorine taste and odor reduction, which can cause coffee to taste bitter
- Enhanced with KDF media to inhibit scale build-up that can damage equipment
- Design is compact and installs out of sight behind equipment
INSTALLATION TIPS

- Use 1/4" water line
- Flush IN-10 by running water through filter for three (3) minutes at full flow OPERATION TIPS

- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 0.75 gpm (2.8 Lpm)
- Always flush the filter cartridge at time of installation and cartridge change SPECIFICATIONS

Overall Dimensions
10.5" L x 2.0" dia. (25.4 x 5.1 cm)

Connections
Inlet Connection: 1/4"
Outlet Connection: 1/4"

Capacity
2,400 gallons (9,085 L)
For low flow coffee applications

Service Flow Rate
Maximum 0.75 gpm (2.8 Lpm)

Pressure Requirements
10 - 125 psi (0.7 – 8.6 bar), non-shock

Temperature
35 - 100°F (2 - 38°C)

Operating Weight
1.5 lbs

Electrical Connection
None required

EPA No. 002623-IL-002
The contaminants or other substances removed or reduced by this drinking water system are not necessarily in your water. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used with disinfected water that may contain filterable cysts.
