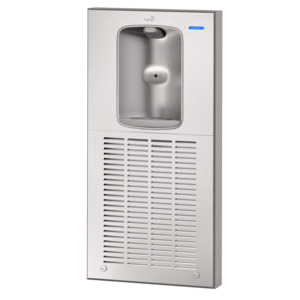

Oasis Aquapointe Modular Contactless Electronic Bottle Filler & Cooler
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
GENERAL INFO
AquaPointe MWSM8EBFY delivers ambient drinking water.
This surface-mount bottle filler includes an electronic sensor for contactless (touch-free) activation and a 30-second shut-off timer. The bottle counter conveniently displays the number of times the unit has been used, encouraging the refill of sports bottles.
Key AquaPointe moulded components contain Freshield, a silver-based antimicrobial compound that reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation.
FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.
FEATURES - BENEFITS
- Sleek, contemporary design
- Enhanced alcove to fit larger sports bottle
- Contactless activation with shut-off timer
- Integrated bottle counter tracks and displays number of refills
- Key AquaPointe bottle filler moulded components contain Freshield
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials and construction
- Heavy duty steel frame
- Refrigerated, delivers Ambient Water
- Built-in panel locks for easy access to chiller and filtration
CERTIFICATIONS / COMPLIANCE
Complies with ANSI A117.1 and ADA. Complies with all relevant CE directives (LVD, EMC, RoHS). Complies with ANSI/NSF 61.
TECHNICAL SPECIFICATIONS
Model Code: MWSM8EBFY 507499E
Activation: Contactless (Infrared Sensor)
Sensor Coverage: Up to 5 cm (approx.)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection: Quasar UVC-LED (Optional) (MWSMEBQY)
Auto-Off Water Flow: Yes
Drainage Type: Built-in drain, Removable drip tray
Exterior: Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Dimensions: 1051(H) x 530(W) x 150(D) mm
Alcove Height: 330 mm
Net Weight: 35 kg
Power Supply: 220–240 V, 50/60 Hz
Cooling Performance: 60 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temperature)
Full Load Amps: 2.2
Rated Watts: 347
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
Warranty: 1 Year
