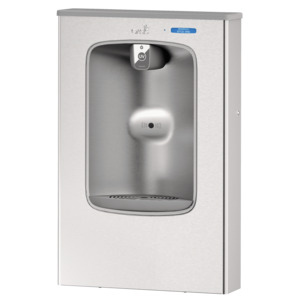

Oasis AquaPointe Non-Refrigerant Bottle Filler, On-A-Wall Surface Mount
PLEASE NOTE: Excludes Filter System
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools and offices.
GENERAL INFO
Quasar PWSMEBQY is a wall-mount, contactless (touch-free) bottle filler that delivers ambient water.
AquaPointe PWSMEBFY delivers ambient drinking water.
AquaPointe PWSMSBF is a compact bottle filler. Ideal as a surface mount or countertop solution, delivers ambient drinking water.
Quasar PWSMEBQY
The Quasar PWSMEBQY is a wall-mounted, contactless (touch-free) bottle filler designed to deliver ambient drinking water. This model features an electronic sensor for hygienic, contactless activation and an automatic 30-second shut-off timer. It includes advanced UVC-LED disinfection technology at the dispense point, eliminating 99.99% of bacteria during dispensing. The UVC-LED system periodically activates between uses to keep the dispense area continuously sanitised. Key moulded components incorporate Freshield antimicrobial protection—a silver-based compound that inhibits microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. A convenient bottle counter tracks the number of bottles refilled, promoting eco-friendly habits.
AquaPointe PWSMEBFY
The AquaPointe PWSMEBFY is a surface-mounted bottle filler providing ambient drinking water. It features an electronic sensor enabling hygienic, contactless (touch-free) activation and includes an automatic 30-second shut-off timer. A built-in bottle counter encourages regular refills of sports bottles, promoting sustainable habits. Key moulded components incorporate Freshield, a silver-based antimicrobial compound designed to inhibit microbial growth and mildew, protecting surfaces from discolouration, odours, and degradation.
AquaPointe PWSMSBF
The AquaPointe PWSMSBF is a compact bottle filler ideal for surface-mounted or countertop installations, delivering ambient drinking water. This manually activated model is operated with a simple push-button. Key moulded components contain Freshield antimicrobial technology, reducing the growth of microorganisms and mildew to protect surfaces from discolouration, odours, and degradation.
FEATURES - BENEFITS
All Models (PWSMEBFY, PWSMEBQY, PWSMSBF):
- Sleek, contemporary design
- Enhanced alcove to fit larger sports bottle
- Contactless activation with shut off timer
- Key AquaPointe moulded components contain Freshield
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials and construction
- Heavy duty steel frame
- Non-Refrigerated – delivers Ambient Water
- Built-in Panel Locks for easy access to chiller and filtration
Contactless Models (PWSMEBFY and Quasar PWSMEBQY):
- Integrated bottle counter tracks and displays the number of refills
Quasar Model Only:
- Kills bacteria and pathogens directly at the spout with UVC-LED disinfection
- Key Quasar bottle filler moulded components contain Freshield
CERTIFICATIONS / COMPLIANCE
- Complies with ANSI A117.1 and ADA
- Complies with all relevant CE directives (LVD, EMC, RoHS)
- Complies with ANSI/NSF 61
- ADA compliant for both adult or child when properly installed
ADDITIONAL OPTIONS
- Remote Chiller
- Filtration System (internal/external)
Reduces sediment, chemicals, organic compounds, and impurities which can affect the quality and taste of your drinking water.
INSTALLATION
Prior to installing, consult council and national codes.
SPECIFICATION: DETAILS
Activation: Contactless (Infrared sensor) – PWSMEBQY, PWSMEBFY
Sensor Coverage: Up to 5 cm (approx.)
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection: Quasar UVC-LED – PWSMEBQY only
Auto-Off Water Flow: Yes – PWSMEBQY, PWSMEBFY
Drainage Type: Built-in drain, Removable drip tray
Exterior: Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Dimensions: 630(L) x 413(W) x 144(D) mm
Alcove Height:
PWSMEBQY: 295 mm
PWSMEBFY: 330 mm
Net Weight: 5 kg
Power Supply: 220-240V, 50/60 Hz – PWSMEBQY, PWSMEBFY only
Cooling Performance: Non-Refrigerated
Full Load Amps: 0.1A – PWSMEBQY, PWSMEBFY
Rated Watts: 7 W – PWSMEBQY, PWSMEBFY
Certifications: ANSI/NSF 61, CA
