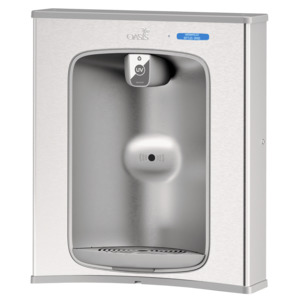

Oasis VersaFiller Retrofit Kit, Drinking Fountain to Combo
Please Note: Excludes Filter System
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools and offices.
GENERAL INFO
Designed to fit existing OASIS P8AC and select competitors’ units.
Quasar PWEBQY is a contactless bottle filler, retrofittable to your drinking fountain. Delivers ambient drinking water. This bottle filler includes an electronic sensor for a contactless (touch-free) activation and a 30-second shut-off timer. The Bottle Counter conveniently displays the number of times the unit has been used, encouraging the refill of sports bottles. Quasar bottle fillers include UVC-LED treatment at the point of dispense, which disinfects the water while being dispensed—killing 99.99% of bacteria. The UVC-LED also cycles on periodically to keep the dispense-point sanitized between uses. Key Quasar components contain Freshield®, a silver-based antimicrobial compound that reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation.
PWEBFY is a contactless bottle filler, retrofittable to your drinking fountain. Delivers ambient drinking water. This model features a contactless sensor with a 30-second shut-off and includes a bottle counter. Key components contain Freshield® for added antimicrobial protection.
Versafiller PWSBF retrofits perfectly on top of your existing OASIS Versacooler drinking fountain. Manually activated via a push-button for the bottle filler and four push-pads for the drinking fountain. Freshield® protection is included in moulded components.
FEATURES - BENEFITS
(Applies to all models: PWEBQY, PWEBFY, PWSBF)
- Large alcove to fit most sports bottles
- Built-in drain – no drip tray to empty
- Heavy duty galvanized steel frame
- Waterways are lead-free in materials and construction
- Brushed stainless steel finish
- Sleek, contemporary design
- Enhanced alcove to fit larger sports bottles
- Contactless activation with shut-off timer (PWEBQY, PWEBFY)
- Integrated bottle counter displays number of refills
- Built-in 100 micron strainer
- Non-Refrigerated/Refrigerated – delivers Ambient Water
- Built-in panel locks for easy access to chiller and filtration
Quasar Model Only (PWEBQY):
- UVC-LED disinfection at the dispense point, mercury-free, kills 99.99% of bacteria
- UVC-LED cycles on periodically to maintain sanitation
- Freshield® antimicrobial protection in key components
CERTIFICATIONS / COMPLIANCE
- Complies with ANSI A117.1 and ADA
- Complies with CE directives (LVD, EMC, RoHS)
- Complies with ANSI/NSF 61
- ADA compliant for both adult and child when properly installed
ADDITIONAL OPTIONS
Remote Chiller
Filtration System (internal/external)
Reduces sediment, chemicals, organic compounds, and impurities which can adversely affect the quality and taste of your drinking water.
INSTALLATION
Prior to installing, consult council and national codes.
TECHNICAL SPECIFICATIONS
Activation
PWEBQY, PWEBFY: Contactless (Infrared sensor)
PWSBF: Bottle Filler – Manual (Touch-Button), Drinking Fountain – Manual (Four push-pads)
Sensor Coverage
Up to 5 cm (approx.)
Filtration
Green Filter (optional), Built-in 100 micron strainer
Disinfection
Quasar UVC-LED (Only PWEBQY)
Auto-Off Water Flow
Only PWEBQY, PWEBFY: Yes
Drainage Type
Built-in drain, Removable drip tray
Exterior
Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis
Heavy Duty Galvanised Steel
Dimensions
630(L) x 413(W) x 144(D) mm
Additional noted size: 480(H) x 413(W) x 144(D) mm
Alcove Height
PWEBQY: 295 mm
PWEBFY, PWSBF: 330 mm
Net Weight
5 kg
Power Supply
Only PWEBQY, PWEBFY: 220-240V, 50/60 Hz
Cooling Performance
Non-Refrigerated
Full Load Amps
Only PWEBQY, PWEBFY: 0.1A
Rated Watts
Only PWEBQY, PWEBFY: 7 W
Certifications
ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
PWEBFY also includes WRAS
Warranty
1 Year
