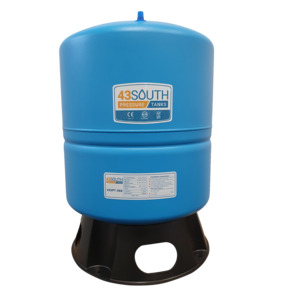

43S Pressure Tanks

10 Bar Pressure Tanks

A pressure tank is an essential part of a pressurised water system that provides water pressure at a set level. The tank stores supplemental water between diaphragm and liner. This process reduces the number of times the motor needs to start in order for the system pressure to remain at the set level. A properly sized pump and pump tank will work as a team to meet your needs and will deliver many years of dependable service.
Key Features

- Seamless Connector – Patented Leak Safe Technology with Welded 304 Stainless Steel Connector.
- PP Liner – FDA Polypropylene Liner.
- Air-Seal Diaphragm – Butyl Rubber Diaphragm 100% Air Seal.
- Welding Zone – Pressure Equipment Directive Certified Welding Structure.
- Coating – Triple Coating Rust Protection.

OPERATING CONDITIONS
Suitable for pumping clean water
Fluid: Water
Maximum working temperature: 93°C
Maximum working pressure: 10 bar
Nitrogen Factory pre-charge: 2 bar
Liner Material: FDA Grade Polypropylene.
Diaphragm: Virgin Heavy Duty Butyl Rubber.
Shell: Cold Rolled Carbon Steel Pressure Equipment Directive certified welding structure.
Connection: Patented Leak Safe Technology with welded 304 Stainless Steel Connection.
Paint: Shield Coating 3x thickness for high humidity and salt content like beaches and rivers.

Warranty

5-year warranty

Performance

Model: 43SPT-003
Total Tank Volume (Litre):3
Draw off Volume (Litre): 1
Diameter (cm): 13
Height Incl. Base (cm): 21.5
Box Dimensions L x W x H (cm): 31 x 30 x 24
Net Weight (kg): 4.1
Gross Weight (kg): 4.7
Connection (Inch): 1

Model:43SPT-008
Total Tank Volume (Litre):8
Draw off Volume (Litre): 3.5
Diameter (cm): 20.3
Height Incl. Base (cm): 29
Box Dimensions L x W x H (cm): 21.5 x 21.5 x 31.5
Net Weight (kg): 1.9
Gross Weight (kg): 2.3
Connection (Inch): 1

Model:43SPT-018
Total Tank Volume (Litre):18
Draw off Volume (Litre): 9.5
Diameter (cm): 28
Height Incl. Base (cm): 39
Box Dimensions L x W x H (cm): 28.5 x 28.5 x 39.5
Net Weight (kg): 3.3
Gross Weight (kg): 3.7
Connection (Inch): 1

Model:43SPT-240
Total Tank Volume (Litre):24
Draw off Volume (Litre): 11.5
Diameter (cm): 29.5
Height Incl. Base (cm): 41.5
Box Dimensions L x W x H (cm): 31 x 31 x 44.5
Net Weight (kg): 3.9
Gross Weight (kg): 4.8
Connection (Inch): 1

Model:43SPT-024H
Total Tank Volume (Litre):24
Draw off Volume (Litre): 11.5
Diameter (cm): 29.5
Height Incl. Base (cm): 41.5
Box Dimensions L x W x H (cm): 31 x 31 x 44.5
Net Weight (kg): 3.9
Gross Weight (kg): 4.8
Connection (Inch): 1
