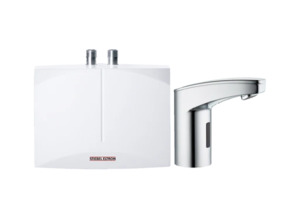

DEM Single Phase Electric Instantaneous Water Heaters
The DEM 6 mini electronic water heater delivers precise and efficient hot water up to 50 degrees Celsius, making it ideal for small-scale applications. Its compact design suits commercial bathrooms, and when paired with a WSH sensor tap, it enhances hygiene by providing touch-free handwashing. FEATURES BENEFITS
- Electronically controlled mini instantaneous water heater with 5.7 kW output
- Delivers a maximum of 50°C
- No standby or distribution losses
- Hardwired single phase connection
- Optional automatic sensor tap
Accurate temperature delivery up to 50 degrees
This appliance delivers water at an electronically controlled set temperature without having to overcome long supply lines with resulting line losses. Consequently, the DEM 6 is ideally suited to washbasins in commercial bathrooms, where a constant outlet temperature is preferred. Delivering a maximum of 50°C hot water following AS3498, the DEM is hardwired to the 230 V mains. With modest dimensions, the DEM 6 single-phase instantaneous water heater is a discreet solution.
Touch-free handwashing
Sensor taps provide the best solution to hygiene, as your hands do not need to come into contact with the tap. This is particularly important in shared bathrooms, where users are exposed to germs from other users. Technical Data Model number DEM 6 Rated output (230V) 5.7kW Rated current (230V) 24.7Amp Phases 1/N/PE/AC 230V Electrical Installation As per AS/NZS3000 Installation requirements AS/NZS3500.4.2 & local requirements Switch on flow rate (minimum flow rate required to switch on the water heater) 2.2L/min Permissible operating pressure 1000kPa Temperature output 50°C max IP Rating IP25 Height 143mm Width 190mm Depth 82mm Weight 1.7kg Colour white For one/several draw off points Yes/No Heating system Bare wire Electronic flow rate control No Electronic air detection system No Programmable temperature No
Downloads WSH Sensor Tap Datasheet DEM 6 (with tap) Data Sheet DEM 6 (without tap) Datasheet DEM 6 Operation & Installation Guide WSH Sensor Tap Operation & Installation Guide DEM 6 Warranty
