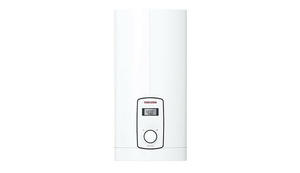

DHB-E 13 / 18 / 27 LCD 3 Phase Electric Instantaneous Water Heaters
With the DHB-E LCD instantaneous water heater, accurate temperature settings are no longer a problem, thanks to the LCD controller. This allows direct accurate continuous flow temperature delivery selection between 20 and 60 °C. With 3i technology for high efficiency and output, the DHB-E LCD provides a reliable and constant supply of hot water. FEATURES BENEFITS
- New generation DHB-E
- Made in Germany
- Electronically controlled
- Accurate temperature delivery selection between 20 and 60 °C
- Suitable for hard and soft water areas
High quality engineering
- Made in Germany
- LCD Controller
- Bare wire element is suitable for hard and soft water areas
- WaterMark Lic No. WMKA00301, AS3498
- Electronically controlled
Flexible installation
- Space saving design
- No safe tray or ventilation required
Available in three electrical sizes:
- DHB-E 13 LCD - 14.5kW, 20.2 Amps per phase, three phase 415V
- DHB-E 18 LCD - 19.4kW, 27 Amps per phase, three phase 415V
- DHB-E 27 LCD - 28kW, 38.9 Amps per phase, three phase 415V
Warranty
- 7 Year full parts and labour domestic warranty
Conditions apply - refer warranty policy for. Technical Data
Product DHB-E 13 LCD DHB-E 18 LCD DHB-E 27 LCD Article number 236747 236748 236749 Rated output (415V) 14.5kW 19.4kW 28kW Rated current (415V) 20.2Amp 27Amp 38.9Amp Phases 3/PE 3/PE 3/PE Electrical Installation As per AS/NZS3000 Installation requirements AS/NZS3500.4.2 & local requirements Switch on flow rate (minimum flow rate required to switch on the water heater) 2.5L/min 2.5L/min 2.5L/min Permissible operating pressure 1000kPa 1000kPa 1000kPa Temperature adjustment 20-60°C 20-60°C 20-60°C IP Rating IP25 (IP24 at electrical connection finished walls) IP25 (IP24 at electrical connection finished walls) IP25 (IP24 at electrical connection finished walls) Height 466mm 466mm 466mm Width 225mm 225mm 225mm Depth 116mm 116mm 116mm Weight 2.9kg 2.9kg 2.9kg Colour white white white Nominal capacity 0.4L 0.4L 0.4L Approvals WaterMark Lic No. WMKA00301, AS3498 For one/several draw off points Yes/Yes Yes/Yes Yes/Yes Heating system Bare wire Bare wire Bare wire Programmable temperature No No No
