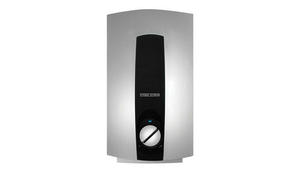

DHCE 6/50, 8/50 Single Phase Electric Instantaneous Water Heaters

Electronically controlled instant hot water up to 50°C with the DHCE 6/50 and DHCE 8/50.

The electronically controlled DHCE single phase instantaneous water heaters from STIEBEL ELTRON. These single phase instant hot water systems are ideal for low flow installations as the water heater has a switch on flow rate at only 1.5 litres per minute. With installation flexibility in mind, the DHCE hot water system is compact in design and ideal for those applications where space is tight. FEATURES BENEFITS

- Modern carbon look design
- Electronically controlled
- Three selectable temperature outputs for greater convenience
- Delivers a maximum of 50 degree Celsius hot water
- No safe tray or drainage required (check local regulations)

- Modern carbon look design
- Electronically controlled
- Three selectable temperature outputs for greater convenience
- Tubular heating element

Installation flexibility

- No safe tray or drainage required (check local regulations)
- Space saving compact design

Save water and energy

The DHCE compact water heater utilises electronic control that helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.

In addition, the compact design allows for close to the point of use installation to help save water by reducing the time it takes to deliver hot water to the outlet. The advantage of an instantaneous water heater is that no heat is lost, and energy wasted, to store hot water at temperature. Energy is only required to heat water when the hot water outlet is switched on.

Available in two electrical sizes:

- DHCE 6/50 - 7.1kW, 30 Amps, single phase 240V
- DHCE 8/50 - 9.5kW, 40 Amps, single phase 240V

Warranty

- 5 year full parts and labour domestic warranty

Conditions apply - refer warranty policy for. Technical Data Model number DHCE 6/50 DHCE 8/50 Rated output (240V) 7.1kW 9.5kW Rated current (240V) 30Amp 40Amp Phases 1/N/PE/AC 220.240V 1/N/PE/AC 220.240V Electrical Installation As per AS/NZS3000 Installation requirements AS/NZS3500.4.2 & local requirements Switch on flow rate (minimum flow rate required to switch on the water heater) 1.5L/min 1.5L/min Permissible operating pressure 1000kPa 1000kPa Temperature adjustment 40°C 45°C 50°C 40°C 45°C 50°C IP Rating IP25 IP25 Height 360mm 360mm Width 200mm 200mm Depth 110mm 110mm Weight (filled with water) 2.45kg 2.45kg Colour Silver look Silver look Nominal capacity 0.45L 0.45L Approvals WaterMark Lic No. WMKA21273, AS3498 For one/several draw off points Yes/Yes Yes/Yes Heating system Tubular Tubular Electronic flow rate control No No Electronic air detection system No No Accepts pre-heated water (solar) No No Programmable temperature No No
Downloads DHCE Data Sheet DHCE Operation and Installation Guide DHCE 6/50 / DHCE 8/50 Warranty Model & Serial Number Location
