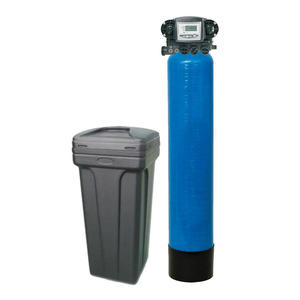

Water Super Softener System with Magnum Head
Commercial and Industrial Water Softening REMOVES/REDUCES
- Hardness
- Iron
- Manganese
- Natural Organic Matter (Tannins)
- Ammonium GENERAL INFO
Aqua Super Softener utilitses an advanced softening material developed in Germany that works effectively on bore water that is problematic and has multiple water-related issues. This unique media inside is a simple and effective solution for 5 problems
including; Hardness, Iron, Manganese, Natural Organic Matter (Tannins) and
Ammonium.
The system automatically regenerates using a timer control which allows the Super Softener media bed to backwash and regenerate with a brine solution (plain salt) as required.
FEATURES BENEFITS
- Most reliable technology for removal of iron & manganese
- Highest permissible concentration of iron & manganese
- Smallest regeneration salt requirement
- Consistent quality of purified water throughout service life STRUCTURAL® POLYGLASS TANK
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels were designed to provide you with years of worry-free performance.
OPERATING PARAMETERS (TANK)
- Maximum operating pressure – 150 psi
- Maximum operating temperature – 49°C
AUTOTROL® 263-268 (INTELLIGENT CONTROL VALVE)
- Time-tested Duraflow flapper provides frictionless sealing for longer service life
- Fibre-reinforced polymer valve body for superior strength and durability,
non-corrosive and UV-resistant
- Optical sensor for precision cycle positioning
- Designed with double backwash for reduced hardness leakage
- Fully adjustable 5 or 8 cycle control for an efficient and reliable water treatment system
- Continuous service flow rate of 95 LPM with a backwash of 76 LPM
- Backwash capability accommodates softener tank up to 16" in diameter
- Supercapacitor for keeping time of day during a power outage
- Environmental protective cover for water resistance, corrosion resistance, and UV stability
- Soft water refill for a cleaner brine tank
- Programming is stored in memory and will not be lost due to power outages
- History data for valve performance OPTIONAL EXTRAS
256 Bypass Valve: This fits directly onto the softener inlet/outlet and allows for bypass when soft water is not required, such as watering the garden.
460 Commander: This is the microprocessor control it measures water usage, so regeneration takes place when necessary.
Turbulator: This is fitted onto the resin tank riser pipe and allows turnover of the resin bed during backwash. The turbulator is highly effective for removing iron buildup from the resin bed.
SUPER SOFTENER SYSTEM
Media Quantities
Code
- Tank Size Inches (DxH)
Service Flow Rate
Backwash flow rate
System capacity, CaCO3
Inlet/Outlet
Coarse
Salt for
Water Softener per Regeneration
Aqua Super
Softener
Resin
(WTSSM)
“Polywound" Tanks
Litres/Minute
Litres/Minute
kg
Inches
kg
litre
WSSA-1054
“Autotrol Head" - 10" x 54"
22
10
1,32
1"
3.8
37
WSSA-1252
“Autotrol Head" - 12" x 52"
30
15
1,7
1"
5.0
50
WSSA-1465
“Autotrol Head" - 14" x 65"
42
20
2,6
1"
7.5
75
WSSA-1665
“Autotrol Head" - 16" x 65"
55
26
3,5
1"
10.0
100
WSSA-2162
“Autotrol Head" - 21" x 62"
92
45
5,25
2"
15.0
150
Note: No need to compensate raw water hardness for iron and manganese concentration when calculating volume capacity
AUTOTROL HEAD
“PENTAIR" 268 Performa Sotnener Valve with 762 Micro Processor Con
