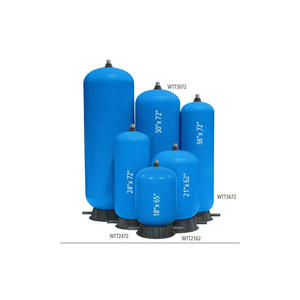

Water Treatment Tanks Commercial / Industrial (4" Inlet)
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels are designed to provide you with years of worry-free performance. FEATURES BENEFITS
- For residential and light commercial water softener/filtration applications
- Slim diameter with capacities from 2 to 49 gallons
- 1.25" Dome Port opening available on select sizes for neutralizing applications
- Unmatched strength and chemical resistance
- 10-year warranty for 6" - 13" vessels
- 5-year warranty for 14" - 16" vessels MATERIAL OF CONSTRUCTION
- Inner shell of high-density polyethylene
- Threaded inlet available in various sizes: 2.5", 4", 4.5" OPERATING PARAMETERS (TANK)
- Maximum operating pressure – 150 psi
- Maximum operating temperature – 49°C PENTAIR DESIGN PARAMETERS
- Safety factor – 4:1
- Minimum burst at 600 psi
- Tested to 250,000 cycles without leakage NSF/ANSI STD. 44 DESIGN PARAMETERS
- Safety factor – 4:1
- Minimum burst at 600 psi
- Tested to 100,000 cycles without leakage
STRUCTURAL® POLYGLASS TANK
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels were designed to provide you with years of worry-free performance. SPECIFICATIONS
VESSEL
PART NO.
HEIGHT W/BASE INCHES / MM
CAPACITY GALLONS / LITERS
CUBIC FEET
6" DIA.
CH30109
0613 PG 2.5"T
13.4 / 340
1.1 / 4.2
0.15
CH30127
0618 PG 2.5"T
18.8 / 479
1.8 / 6.8
0.24
CH30151
0635 PG 2.5"T
35.7 / 906
3.8 / 14.4
0.51
7" DIA.
CH30190
0735 PG 2.5"T
35.4 / 898
5.2 / 19.7
0.7
CH30213
0744 PG 2.5"T
44.0 / 1120
6.7 / 25.4
0.9
8" DIA.
CH31835
0818 PG 2.5"T
18.7 / 475
3.3 / 12.5
0.44
CH33858
0824 PG 2.5"T
24.4 / 620
4.5 / 17.0
0.6
CH31836
0830 PG 2.5"T
30.3 / 770
5.9 / 22.3
0.79
CH30264
0835 PG 2.5"T
35.39 / 899
6.6 / 25
0.88
CH30286
0840 PG 2.5"T
40.1 / 1018
7.8 / 29.5
1
CH30305
0844 PG 2.5"T
44.5 / 1130
8.7 / 32.9
1.2
9" DIA.
CH30317
0918 PG 2.5"T
18.4 / 467
3.9 / 14.8
0.52
CH30347
0935 PG 2.5"T
35.3 / 896
8.3 / 31.4
1.1
CH30360
0940 PG 2.5"T
39.8 / 1010
9.5 / 36
1.3
CH30367
0942 PG 2.5"T
41.9 / 1063
10.1 / 38.2
1.4
CH30383
0948 PG 2.5"T
48.7 / 1237
11.8 / 44.7
1.6
10" DIA.
CH31357
1018 PG 2.5"T
18.9 / 480
4.9 / 18.5
0.65
CH30460
1035 PG 2.5"T
35.5 / 902
10.2 / 38.6
1.4
CH30491
1040 PG 2.5"T
40.3 / 1024
11.5 / 43.5
1.54
CH30523
1044 PG 2.5"T
44.6 / 1134
13.1 / 49.6
1.8
Consult Factory
1044 PG 2.5"T 1.25" Dome Port
44.9 / 1142
13.1 / 49.6
1.8
CH30546
1047 PG 2.5"T
47.7 / 1211
15.1 / 57.2
2
CH30579
1054 PG 2.5"T
54.4 / 1383
16.4 / 62.1
2.2
Consult Factory
1054 PG 2.5"T 1.25" Dome Port
54.4 / 1383
16.4 / 62.1
2.2
CH31478
1060 PG 2.5"T
61.3 / 1558
18.3 / 69.3
2.45
12" DIA DOU
