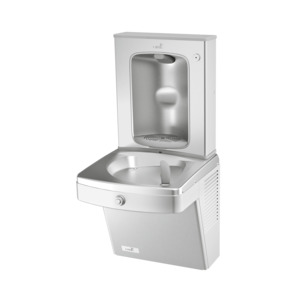

Oasis Vandal Resistant Versafiller with VersaCooler Mechanical Combo
Please Note: Excludes Filter System
APPLICATIONS
Suitable for public building, gymnasiums, sports complexes, hospitals, schools and offices.
GENERAL INFO
The unit is a surface mount hydration station combo that is manually activated. The bottle filler requires a push of the touch-button, while the drinking fountain is activated via the vandal-resistant touch-button. Delivering ambient drinking water.
VersaFiller
VersaFiller is a surface mount hydration station combo that delivers chilled drinking water. The unit is manual activated.
FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.
FEATURES - BENEFITS
Bottle Filler
- Sleek, contemporary design
- Enhanced alcove to fit larger sports bottle
- Key bottle filler moulded components contain Freshield
- Built-in drain – no drip tray to empty
- Built-in 100 micron strainer stops particles before they enter the waterway
- Waterways are lead-free in materials and construction
- Heavy duty steel frame
- Non-Refrigerated, delivers Ambient Water
- Built-in Panel Locks for easy access to chiller and filtration
- The VersaCooler Drinking Fountain is activated by the vandal-resistant touch button
- The basin is designed to eliminate splashing and standing water
- Refrigerated Models deliver Chilled Water
Vandal Resistance Models Only
- The drinking fountain is activated via the vandal-resistant push-button
CERTIFICATIONS / COMPLIANCE
- Complies with ANSI A117.1 and ADA
- Complies with all relevant CE directives (LVD, EMC, RoHS)
- Complies with ANSI/NSF 61
- ADA compliant for both adult or child when properly installed
- Together with ISO 9001:2015 and ISO 14001:2015, our lean manufacturing and system approach and well-trained staff continue our industry heritage
ADDITIONAL OPTIONS
- Remote Chiller
- Filtration System (internal/external)
Reduce sediment, chemicals, organic compounds and impurities which can adversely affect the quality and taste of your drinking water.
MODEL CODE: PVSBF 507314
ACTIVATION: Bottle Filler: Manual (Touch-button)
Drinking Fountain: Manual (Vandal-Resistant Touch-button)
FILTRATION: Green Filter (optional), Built-in 100 micron strainer
AUTO-OFF WATER FLOW: No
DRAINAGE TYPE: Built in drain, Removable drip tray
EXTERIOR: Antimicrobial ABS Plastic, Brushed Stainless Steel
CHASSIS: Heavy Duty Galvanised Steel
DIMENSIONS: 960(H) x 413(W) x 473(D)
ALCOVE HEIGHT: 330 mm
NET WEIGHT: 16 kg
POWER SUPPLY: -
COOLING PERFORMANCE: Non-Refrigerated
FULL LOAD AMPS: -
RATED WATTS: -
ENERGY SYSTEM: -
COUNTRY OF ORIGIN: Mexico
CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS), WRAS
WARRANTY: 1 Year
