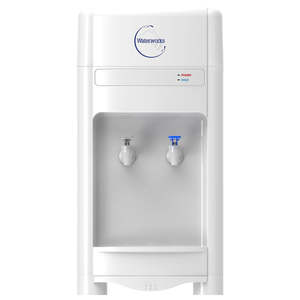

Waterworks "Classic" Max Bench Top Inline Water Cooler - Cool/Cold
PLEASE NOTE
Excludes Filter System
WATER TEMPERATURE
Cool and Cold
APPLICATIONS
Reception office area and commercial high output applications
GENERAL INFO
Waterworks™ has been leading the way with POU water coolers since introducing the "Classic Max" series, over 20 years ago. This model has often been “copied" but none have been able to equal or better the quality and longevity of the Waterworks™ D5.
COLD TANK: Huge 14.3 litre high density polypropylene tank. The tank is tough, rustproof and is easy to clean with its large radius.
HOT TANK: 1.8 litre, type 304 stainless steel with 500 watt sheathed heater ensures temperature control. On/off switch is easily accessible at the back of the unit.
CABINET: Gloss Cloud White colour. Top and front panels are moulded UV treated ABS. Side panels are zinc coated steel sheets, covered in polymer polyester resin.
TAPS: NSF approved, durable polypropylene lever type taps with self-closing design and fast flow. Hot safety tap comes as standard on hot/cold model. Optional push taps now available.
FLOAT ASSEMBLY: One stage polyethylene float system maintains the water level and shuts off when full.
FEATURES BENEFITS
- The most reliable POU cooler on the market
- Available in bench top or floor standing
- Connects to mains water supply
- Hot & Cold or Cool & Cold models available
- HUGE 14.3L Cold Tank
- Compatible with most Inline Filter Systems
- Easy to clean and sanitise
- 36 Month Comprehensive Warranty
OPTIONAL EXTRAS
PNP FILTER SYSTEM: The Waterworks™ PNP filter range are available in single, twin or triple. With the swing & twist design and automatic water shutoff, filter changes are simple, no need for tools or to turn off the mains water.
CD2 – CUP DISPENSER: The CD2 is perfectly colour matched to suit the B5, B10, D5 & D10 coolers. Waterworks™ paper & plastic cups are made to fit the CD2.
INSTALLATION
To be installed in accordance with local plumbing laws. Failure to install a certified Pressure Limiting Valve will void warranty.
SPECIFICATIONS
REFRIGERATION: Gas R134A. The refrigerant flow is controlled by a capillary tube which has no moving parts. The compressor is hermetically sealed with an automatic overload protector. Lubricant is not needed.
ELECTRICAL: Certificate number 160793. 220v 50hz single phase. A 1.5 metre power cord is supplied. Full load current is 1.2 amps.
CONDENSER: Quietly operating, air cooled with no moving parts.
PERFORMANCE
Tap 1 Approx. 4 - 10°C
Tap 2 Room Temperature
Hot tap Approx. 84 - 89°C
ROOM TEMP
21°C
27°C
32°C
150ML CUPS/HR AT 10°C
44
32
18
LITRES/HR AT 10°C
6.6
4.8
2.7
SHIPPING WEIGHTS & DIMENSIONS
WEIGHT 16kg WIDTH 33cm DEPTH 33cm HEIGHT 70cm
WARRANTY
The Waterworks™ series is covered by our 36 month Comprehensive Warranty
The warranty provides comprehensive parts and labour coverage for the period of 36 months from the date of original sale. Damage to the stainless steel tank may occur if using
reverse osmosis or incorrect filtration. Warranty will be void in the event of this happening.
Please discuss filtration options with your local water filter specialist.
