Whole House Water Filtration 3 Stage Big System

GENERAL INFO

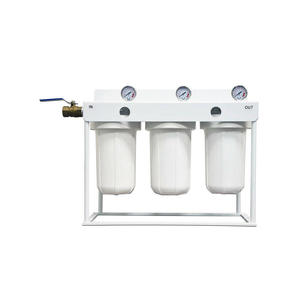

The Aqua Whole House Triple Stage Water Filtration system is manufactured by Pentair, a global company known for being the quality choice for water treatment professionals due to their strong, reliable brands and product lines. Pentair’s Whole House Water Filtration is a 3 stage system consisting of a pleated filter, dual gradient filter and KDF-GAC filter (Mains supply) and radial flow GAC (Rainwater supply). The whole house system has flow rate of 40 to 50 lpm and is installed at the water’s point of entry (POE) to the house. The system treats all incoming water before it goes into individual supply lines that feed your laundry, bathrooms, kitchen, outside faucets and taps.

The first two filters are for sediment removal. The pleated filter is manufactured from a durable, nonwoven polyester fabric that is suitable for the removal of coarse sediment. The dual gradient filter which is manufactured from 100% pure polypropylene is designed to remove sediment, particles and for cyst reduction. Using an advanced design the filter is able to achieve up to three times the normal dirt holding capacity as other sediment filters. It has a 25 micron outer for larger particles and a 1 micron inner core for finer particles and cysts.

Pentair’s heavy duty Big White® housings offer large capacity filtration for high-flow and heavy sediment applications. These are durable and can last, whereas cheap imitations last half the time or less.

The third filter for mains supply is the KDF-GAC, a two media cartridge consisting of KDF (Kinetic Degradation Fluxion) and GAC (Granulated Activated Carbon). When the KDF media is combined with GAC it strips the chlorine from the water before it contacts the carbon. This frees the carbon to reduce more chemical contaminants including herbicides, pesticides, VOC’s and THM’s. try (POE) to the house. The system treats all incoming water before it goes into individual supply lines that feed your laundry, bathrooms, kitchen, outside faucets and taps. The third filter for rainwater supply the radial flow GAC, a unique radial flow design which offers the benefits of granular activated carbon (GAC) filtration, such as low pressure drop, while at the same time significantly reducing the release of carbon fines commonly associated with GAC style cartridges. It is ideal for point-of-entry (POE) and other high flow rate applications.

FEATURES BENEFITS

- Removes particles and sediment from water
- Save money by not buying costly bottled water
- Protects downstream equipment and appliances
- A wise investment for your health, family and your pocket
- With clean and better tasting water, you drink more which is very important for the body’s overall health
- Chlorine free, allergy free. Removing chlorine from bathing water results in “less skin irritation"
- Removes up to 98% of chlorine and dangerous by-products
- Reduces heavy metals like lead, copper and mercury
- Removes pesticides, THMS and other dangerous chemicals

Applicable when KDF-B filter is used

NSF: The GAC-10 and GAC-20BB are tested and certified by NSF International to NSF/ANSI Standard 42 for material requirements only.

SPECIFICATIONS

PLEATED POLYESTER CARTIDGE:

Filter Media:
Non-woven polyester

Standard Endcaps:
Vinyl plastisol

Big Blue Endcaps:
Polypropylene

Core:
Polypropylene

Temperature Rating:
40-125°F (4.4-51.7°C)

KDF CARTIDGE:

Filter Media
Coconut Shell Carbon

Temperature Rating
40-125°F (4.4-51.7°C)

Maximum Pressure
125 psi

GAC CARTIDGE:

Filter Media:
Granular Activated Carbon

End Caps:
Polystyrene

Post-Filter:
Spun polypropylene

Outer Casing:
Polystyrene

Expansion Pad:
Polypropylene

Gaskets - Top: Buna-N, Bottom: SantopreneTM

Temperature Rating:
40-125°F (4.4-51.7°C)

CONTAMINANTS REMOVAL/REDUCES

Bacteria & Viruses: Minimal/ No Removal
Bad Tastes & Odours: Effectively Removes/Reduces
Chlorine: Effectively Removes/Reduces
Fluoride: Minimal/ No Removal
Hydrogen Sulfide: Effectively Removes/Reduces
Heavy Metals : Effectively Removes/Reduces
Nitrates: Minimal/ No Removal
Radon: Significantly Reduces
Sediment: Significantly Reduces
Iron: Effectively Removes/Reduces
VOC’s: Minimal/ N
