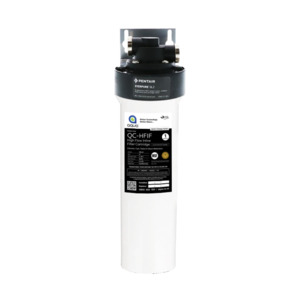

Under Bench High-Flow Inline Filter

APPLICATION

Residential and Commercial.
Reduces sediment, chemicals, chlorine, metals, Giardia, and cysts.

GENERAL INFO

High-flow water filter cartridge with high-quality multistage filtration. Includes 1 micron filtration, Giardia and cyst rated, granular activated carbon filter that vastly improves water quality to produce great tasting, healthier water and ice. Also comes with phosphate for scale reduction.

FEATURES BENEFITS

- Made in the USA
- 8 Litres per minute
- 1 Micron Carbon Block
- Reduces: Cysts, heavy metals, scale, particulates, chlorine, turbidity, bad taste and odour
- Enhances equipment protection by regulating scale buildup
- Utilises technology that optimises surface area for contaminant reduction
- Moulded unit (reduces the risk of contamination from adhesives)
- Laboratory tested, tried and proven performance
- Chlorine reduction is greater than 95%
does not remove minerals that may be beneficial to your health.

GENERAL INSTALLATION/OPERATION/MAINTENANCE REQUIREMENTS

- Note the flow direction of the filter.
- Flush the new cartridge with 18.95 litres of water through the filter at the rated service flow before use and check for leaks. If leaks occur, check the tightness of tubing and fittings. If leaks persist, discontinue use and call your supporting dealer.
- Replace the cartridge when the rated capacity is reached or when the flow becomes too slow.
- Install in compliance with state and local laws and regulations.
- Contains no toxic substances in sections that have contact with water
- Uses certified plastic material, GE ULTEM-Ceramic and Shank, Noryl-Body
- Utilises the process of automation to increase the accuracy of quality control
- All products have a smooth 360 swivel
- Mounting hardware is included

SPECIFICATIONS

Capacity: 37,500 Litres

Min/Max Temperature: 2 - 38°C

Min/Max Pressure: 200 - 520˜ kPa

Micron Rating : 1 micron

Size: 31cm x 6.4 cm

Filter Media: Specialised Carbon Block

Maximum Flow: 8 Lpm at 420 kPa

Micron Rating is nominal. ˜Where line pressure exceeds 500 kPa, an approved pressure-limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4)

SPECIAL NOTICES

Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. PERFORMANCE CERTIFIED BY ANSI/NSF1 Standard 42 Aesthetic Effects/Standard 53 Health Effects Parameter USEPA
MCL Influent
Challenge Effluent
Average Effluent
Maximum %
Reduction
Average %
Reduction
Minimum Chlorine - 2.0 mg/L 0.03 mg/L 0.06 mg/L 98.5 50 Cyst 99.95%
Reduction 111,750
Particles/ml 1 particle/ml 2
particles/ml 99.99% 99.99 1Tested using flow rate = 0.5 gpm; pressure = 60 psig;
pH = 8.5 and 6.5; temp. = 20 ° - 2.5 ° C
