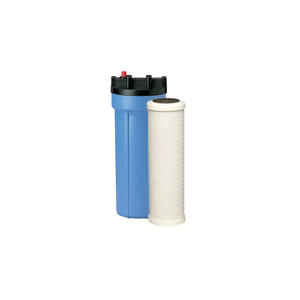

Under Bench Inline Water Filter Systems

- Coffee Machines
- Steam Ovens
- Boiling Water Units
- Ice Machines
- Post Mixed Drink Dispenses
NOTE: Specialty cartridge options are available for different applications. GENERAL INFO

This system is easily installed Inline to an existing kitchen mixer tap and will filter all the cold water, delivering clean, pure, great tasting water. Clean tasting and refreshing every time. Improves physical and mental performance. Needed for proper kidney function and healthy metabolism. Money saved from buying soft drinks, juice, teas and coffee. FEATURES BENEFITS

- Eliminates the need for an additional tap on your bench
- System easily installed Inline (out of sight)
- All cold water is filtered
- Water is forced through a high quality 0.5 micron filter
- Cartridge Replacement/Service (Recommended every 6-12 months)
- Costs less than a cent per litre
- Easily updated to twin unit to allow for greater sediment removal or for an additional specialty cartridge

Commercial Grade Filtration

- Commercial grade metal canister protects the filter system from splitting or bursting
Removes & Reduces

- Bad Taste & Odour, Chlorine, Sediment, Pesticides, Asbestos, Giardia / Cryptosporidium (Specialty Filters )

We have a selection of Specialty Filters (SF) which can remove/reduce the following; Fluoride, Total Dissolved Solids (TDS), Nitrates, Hardness (Lime/Scale), Bacteria. SPECIFICATIONS & PERFORMANCE

CARBON BLOCK CARTRIDGES SPECIFICATIONS (CBS-05)

Filter Media: Bonded PAC

Endcaps: Polypropylene

Inner/Outer Wrap: Polyolefin

Netting: Polyethylene

Gaskets: Santoprene

Temperature Rating: 40-180°F (4.4-88.2°C)

Dimensions: 73 mm x 124 mm

HOUSING SPECIFICATIONS (FHS-12)

Housing: Polypropylene

Cap: Reinforced polypropylene

Button Assembly: 300 Series stainless steel, EPDM and polypropylene

O-Ring: EPDM

Temperature Rating: 40-125°F (4.4-51.7°C)

Maximum Pressure: 125 psi (8.6 bar)

Dimensions: 187 mm x 111 mm
