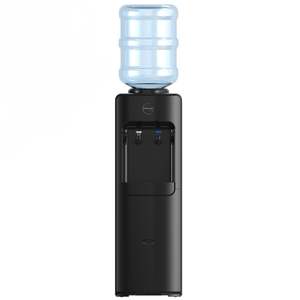

Waterworks “Contemporary” Freestanding Top Bottle Water Cooler - Cool/Cold

PLEASE NOTE
Excludes Filter System & Bottle

WATER TEMPERATURE
Cool and Cold

APPLICATIONS
Reception office area and commercial high output applications

GENERAL FEATURES

The newest addition to our range of bottle top coolers, boasting the high level of quality Waterworks™ is renowned for. The Waterworks “Contemporary" Freestanding Bottle Water Cooler is sure to be a new favourite!

COLD TANK: 3.6 litre hygienic type 304 stainless steel for superior chilling. The highly polished surface is easy to clean and maintain.

CABINET: Available in white, black & off white. The top and front panels are moulded UV treated ABS. The side panels are made from zinc coated steel sheets covered in polymer polyester resin.

TAPS: NSF Approved durable polypropylene self-closing design. Fully recessed, lever type for fast flow. Hot safety tap comes as standard on hot/cold model. Optional hygienic push taps also available.

OPTIONAL EXTRAS

SELF-FILL BOTTLE: A flexible filtration option for home, office or factory. Just fill with tap water for a continuous supply of fresh water. The SFB is the perfect partner for all bottled coolers and ceramic dispensers.

AQUANET®: Simply remove the no-spill spike and replace with a scuff ring (SR5) to provide a base for the Waterworks™ Aquanet® (AN2) and bottle. Ask us about the Non-splash Valve which is ideal for the set up.

NON SPLASH VALVE: Allows the bottle to be change without excess spillage. After putting the NSV on the bottle, simply place the bottle on the cooler and the valve opens to let water through. When removing the bottle, the valve closes automatically.

SPECIFICATIONS

REFRIGERATION: Gas R134A. The refrigerant flow is controlled by a capillary tube which has no moving parts. The compressor is hermetically sealed with an automatic overload protector. Lubricant is not needed.

ELECTRICAL: Certificate number 160793. 220v 50hz single phase. A 1.5 metre power cord is supplied. Full load current is 1.2 amps.

CONDENSER: Quietly operating, air cooled static type with no moving parts.

PERFORMANCE

Tap 1 Approx. 4-10°C

Tap 2 Room Temperature

Hot tap Approx. 84-89°C

ROOM TEMP °C: 21, 150ML CUPS/HR 10°C: 44, LITRES/HR AT 10°C: 4.2

ROOM TEMP °C: 27, 150ML CUPS/HR 10°C: 32, LITRES/HR AT 10°C: 3.1

ROOM TEMP °C: 32, 150ML CUPS/HR 10°C: 18, LITRES/HR AT 10°C: 1.8

Intermittent use only, continuous use will result in reduced performance

SHIPPING WEIGHTS & DIMENSIONS

MODEL : WATERWORKS CLASSIC FREESTANDING BOTTLE WATER COOLER

WEIGHT : 18kg

WIDTH : 33cm

DEPTH : 33cm

HEIGHT: 100cm

WARRANTY

The Waterworks™ “Contemporary" Freestanding Bottle Water Cooler Series water coolers are covered by our 36 month Comprehensive Warranty (copy available on request). The warranty provides comprehensive parts and labour coverage for the period of 36 months from the date of original sale.

Damage to the stainless steel tank may occur if using reverse osmosis or incorrect filtration.

Warranty will be void in the event of this happening.

Please discuss filtration options with your local water filter specialist.
