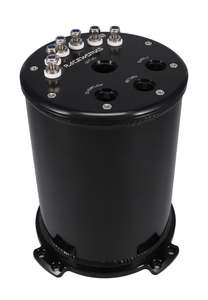

TRIPLE PUMP SURGE TANK 2.8L | ALY-059BK
AN-10 ORB Feed (new vortex design to promote flow)
AN-8 ORB Supply/Return/Overflow
Triple set of Stainless Steel Electrical Terminals (allowing fuel pumps to be staged)
Can be configured with single, twin or triple fuel pumps
Includes 10mm barb inlet fittings, PTFE hose and 3 fuel pump strainers
Features Viton O-rings and Teflon in-tank hose suitable for E85
Comes with 2 sets of O-rings to allow for 38mm & 39-40mm fuel pumps (pre-fitted to suit 39-40mm)
2.8L Capacity When Used with a Single Pump
2.6L Capacity When Used with a Twin Pump
2.4L Capacity When Used with a Triple Pump
Height – 215mm Diameter – 140mm Depth – 195mm
Supplied with strainers to suit two sets of pump holder orings
Lubricate pumps for easy installation
For High Current fuel pump wiring, see Fuel Pump Wiring Kits
