DEUTSCH HD30 18-8 KIT | CPS-503

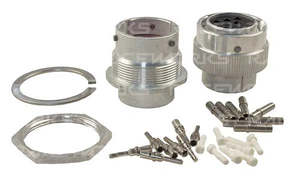

DEUTSCH HD30 18-8 KIT
18-8. Shell size 18. 8 x Size 12 Contacts Green Ring Normal Wire Seal. For use with Standard Insulation Wire (Recommended O.D of 3.40-4.32mm) Mounting hole diameter €š 38mm Housing Aluminium Seal Silicone Rubber Shock 50G Vibration 20G rms 10 €š 2000Hz Operating Temperature -55deg C to 125deg C Wire Size 12-14 AWG (2.0-3.0 mm^2) Recommended Strip Length 5.6-7.2mm Current Rating 25A @ 125deg C
