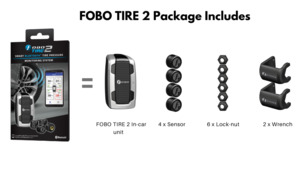

FOBO Tire (For Passenger Cars)

SMART BLUETOOTH TIRE PRESSURE MONITORING SYSTEM (TPMS) using latest Bluetooth 5.0 (Sensors) that works directly with your smart device using Android 5.0 and iOS 9.3 or later.

- Monitors up to 800 Kpa (116 psi).
- Real-time alerts.
- Fast & Slow leak detection.
- Auto Synchronization.
- Monitors Spare tire.

FOBO TIRE 2 sensor Specification:

- Bluetooth: v5.0
- Transmit Conducted Power: 5.0dBm (sensor)
- Receiver Sensitivity: Conducted Sensitivity -97dBm @ 0.1%BER
- Antenna Return Loss: Typical -9dB
- Operating Frequency: 2.402~2.480 GHz
- Battery Type: CR1632 (sensor). Operating life up to 1 year. (NOTE: The battery operating life varies according to usage and climate temperature)
- Operating Temperature: -40°C to 85°C (sensor), -20°C to 60°C (sensor with common CR1632 batteries)
- Weight: 7.6g (sensor –with battery)
- Sensor Dimension H x D: 13.8mm x 20.2mm
- Maximum Pressure: 800kPa (116psi)
- ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard
- Operating Humidity: up to 90% non-condensing at 40oC
- Dust and Water Proof: IEC60529 compliant to IP57(sensor)
- Sensor structural threshold: 100N ball pressure intensity test
- Mechanical & Environmental Reliability Testing Standards: IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13

FOBO TIRE 2 In-car unit Specification:

- Weight: ~44.6g (In-Car – without batteries)
- In-Car unit Dimension HxWxL: 25mm x 48mm x 85mm
- Battery Type: AA (In-Car). Operating life up to two years. (NOTE: The battery operating life varies according to usage and climate temperature).
- Operating Temperature: -20°C to 65°C (In-Car)
