Knuckle Unions - Hansen Quick Connect - KU

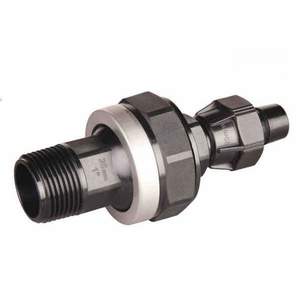

The Hansen Knuckle Unions are used to connect and disconnect pipe work or valves quickly and easily from pumps and existing installations. The Knuckle Union has the added benefit of a 9 degree ‘Knuckle’ movement providing greater flexibility at installation time and removing the necessity of the pipe work having to line up exactly with your pump. Product Sizes and Pressure Ratings
- Code - Metric - Imperial
Knuckle Union - Poly - Male BSPT
- KU20M20P - 20mm x 20mm -" x 3/4"
- KU20M25P - 20mm x 25mm - 3/4" x 1"
- KU25M20P - 25mm x 20mm - 1" x 3/4"
- KU25M25P - 25mm x 25mm - 1" x 1"
- KU25M32P - 25mm x 32mm - 1" x 1 1/4"
- KU32M25P - 32mm x 25mm - 1 1/4" x 1"
- KU32M32P - 32mm x 32mm - 1 1/4" x 1 1/4"
Knuckle Union - Female BSPT - Male BSPT
- KU20M20F - 20mm x 20mm - 3/4" x 3/4"
- KU25M25F - 25mm x 25mm - 1" x 1"
- KU32M32F - 32mm x 32mm - 1 1/4" x 1 1/4"
Knuckle Union - Poly - Female BSPT
- KU20F20P - 20mm x 20mm - 3/4" x 3/4"
- KU25F25P - 25mm x 25mm - 1" x 1"
- KU32F32P - 32mm x 32mm - 1 1/4" x 1 1/4"
Knuckle Union - Poly - Poly
- KU20P20P - 20mm x 20mm - 3/4" x 3/4"
- KU25P25P - 25mm x 25mm - 1" x 1"
- KU32P32P - 32mm x 32mm - 1 1/4" x 1 1/4"
All the above Knuckle Unions are rated for 10 Bar Pressure. Features and Applications
- Knuckle Unions are used to connect and disconnect pipe work or valves quickly and easily from pumps and existing installations.
- Provide ultimate flexibility around pumps.
- Offer a quick connect / disconnect solution around pumps or along the trunk of a pipe.
- 9º ‘Knuckle’ movement provides greater flexibility at installation time and removes the necessity of the pipe work having to line up exactly with your pump.
- The pump can easily be removed or installed from the system for servicing by undoing the common nut.
- The pump can be misaligned from the pipe work by a total of 9º
- Multiple configurations enable this fitting to meet the needs of just about any situation.
- The ability to connect to poly pipe applications directly from the pump or in-line.
- Fits onto the extensive range of Hansen Easy Fit & True Fit Pipe gs. Installation
- Please look at the Poly Fittings pages for connection of the Poly Easy Fit pipe fittings side of the fittings.
- Ensure that all pipework is adequately supported.
- 1. Line up the two ends of the Quick Connect Knuckle Union
- 2. Join the two parts together by winding the common centre nut on to the matching male thread.
- 3. Ensure that the common centre nut is firmly tightened. DO NOT OVER TIGHTEN.
- 4. The finished connection - the Poly Pipe is connected with the Quick Connect Knuckle Union.
